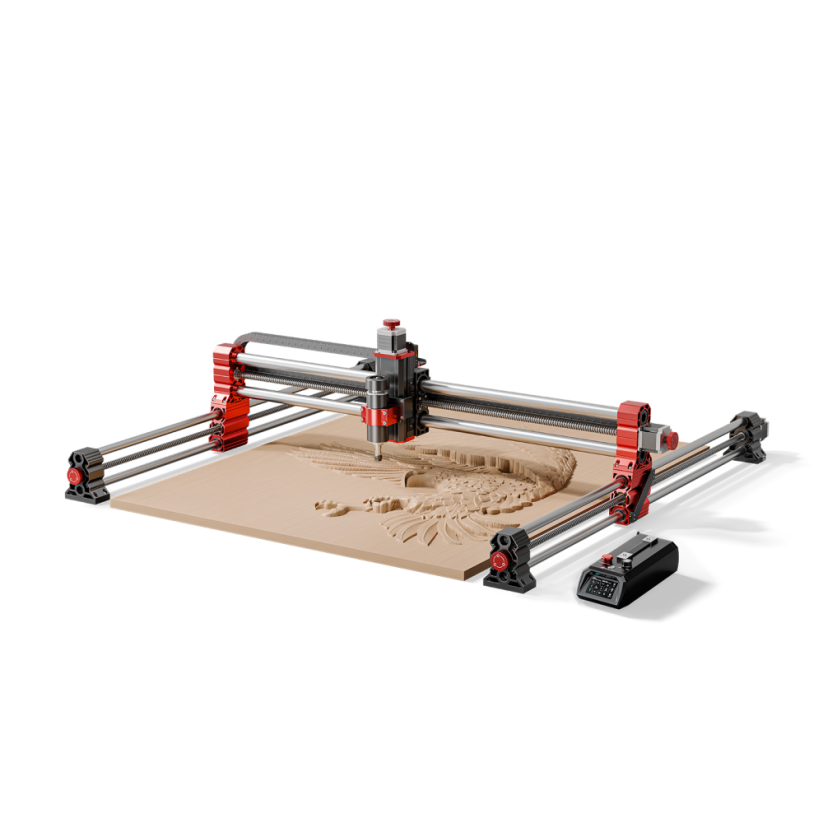

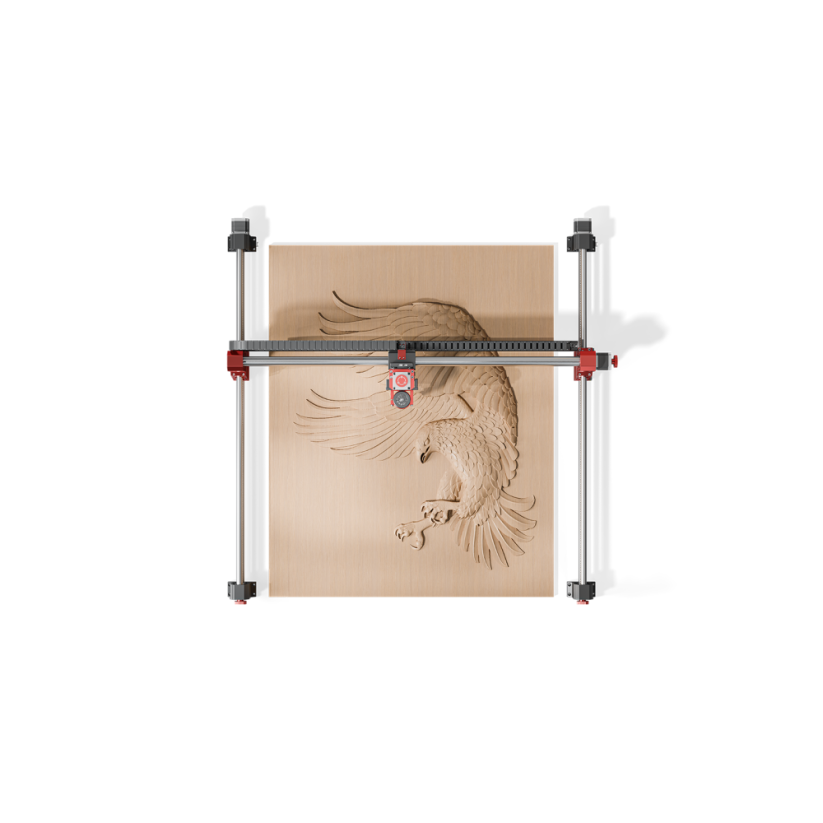

The TwoTrees TTC-H40 is a large-format desktop CNC router with a 1000 × 1000 × 100 mm work area, a rigid aluminum frame, and a 500 W spindle that can be upgraded to 3000 W. Thanks to the open-source GRBL firmware, quick switching between CNC and laser modes, and compatibility with Vectric, Fusion 360, EASEL, and Carveco Maker, it is ready for serious woodworking and prototyping projects as well as detailed engraving.

Large work area for real projects

A 1000 × 1000 × 100 mm work envelope is above average for a desktop CNC. You can easily handle large panels, long trims, signs, furniture components, or detailed relief carving, while the machine still fits into a workshop or studio without the need for an industrial hall. This saves you time on splitting jobs into smaller pieces and opens the door to projects that a typical hobby router simply cannot handle.

Rigid aluminum construction and linear guides

The aluminum alloy frame combined with linear guides ensures smooth and stable motion even during longer jobs. Frame rigidity is the key to repeatable accuracy - whether you are cutting fine details, producing identical parts in series, or machining across the entire table, the results stay clean and predictable from the first to the last pass.

500 W spindle with upgrade option up to 3000 W

The included 500 W spindle reliably handles wood, MDF, acrylic, carbon fiber composites, and soft metals. Once your projects outgrow the base power, the machine easily accepts stronger spindles up to 3000 W. Your investment in the H40 grows with you - there is no need to replace the entire platform, just swap the motor.

Two machines in one - CNC and laser

The open-source GRBL control system makes it easy to integrate into existing workflows. The CNC/laser switch works in a single step, so transitioning between milling and laser engraving takes no unnecessary time. An optional laser module extends the machine's capabilities to include cutting and marking within the same work area.

3.5" touchscreen for convenient operation

The integrated 3.5-inch resistive touchscreen allows you to launch jobs directly from the machine, without needing a computer connected to the router. Control is intuitive - select a file, set the zero point, and start the job. This is especially useful in workshop environments where you want to keep your PC safely away from the dusty zone.

Compatibility with top-tier CAM software

The H40 works with popular CAM programs such as Vectric, Fusion 360, EASEL, and Carveco Maker. Windows, macOS, and Linux operating systems are supported, so you can integrate the machine into an environment you are familiar with. There is no need to retrain your whole team on proprietary software or deal with licensing traps.

Material versatility from wood to soft metals

With the base spindle, the H40 handles wood, plywood, MDF, acrylic sheets, carbon composites, and soft metals such as aluminum. This makes it a universal tool for makers, model shops, signage businesses, as well as a complement to 3D printing with PLA or tougher materials like PETG - you can combine subtractive and additive manufacturing within a single prototype.

Ready for workshop use

The construction is designed so that the machine withstands regular daily use - whether at home, in a fablab, or in small-batch custom production. The combination of a robust frame, open-source firmware, and an upgradeable spindle makes it a long-term platform, not just a one-off purchase.

Technical specifications

Parameter	Value
Model	TwoTrees TTC-H40
Machine type	Desktop CNC router (with optional laser module)
Work area (X × Y × Z)	1000 × 1000 × 100 mm
Base spindle	500 W
Maximum supported spindle	up to 3000 W
Frame construction	Aluminum alloy, linear rods
Control / firmware	GRBL (open-source)
Operation	3.5" resistive touchscreen
Supported materials	Wood, MDF, acrylic, carbon fiber, soft metals
Compatible CAM software	Vectric, Fusion 360, EASEL, Carveco Maker
Supported OS	Windows, macOS, Linux
Mode switching	CNC / laser in a single step

Package contents

• TwoTrees TTC-H40 CNC router
• 500 W spindle
• 3.5" touchscreen with control electronics
• Power and connection cables
• Assembly tool kit
• Documentation and software access
