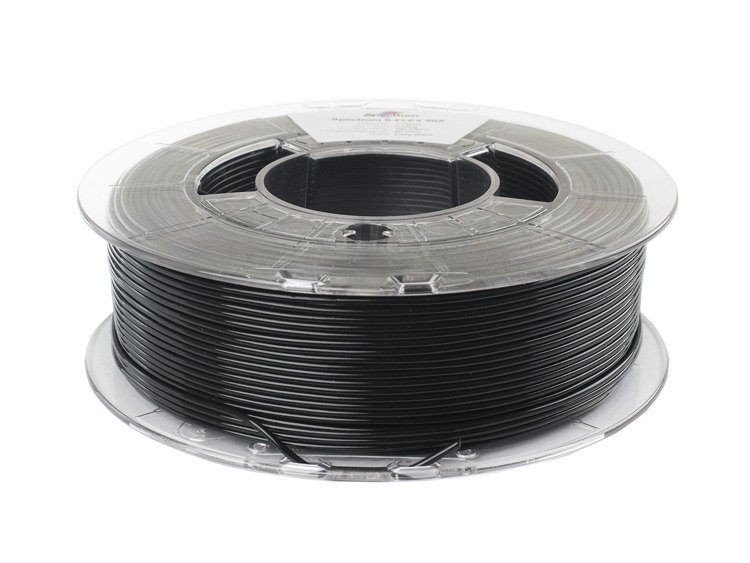

Spectrum filament S-Flex 98A 1.75mm 0.25kg | Black - Deep Black
Spectrum filament S-Flex 98A 1.75mm 0.25kg | Black - Deep Black
Spectrum S-Flex 98A is a flexible TPU filament with a hardness of 98 Shore A, combining elasticity with high mechanical and chemical resistance and easy printing.
✔️ Hardness 98 Shore A - hard elastomer
✔️ Elongation at break up to 510%
✔️ High resistance to hydrolysis and chemicals
✔️ Low shrinkage and excellent bed adhesion
✔️ Nozzle temperature 210-235 °C, bed 40-60 °C
✔️ Diameter 1.75 mm, spool weight 0.25 kg
✔️ Ideal for seals, bumpers, dampers and flexible parts
✔️ Compatible with most FDM/FFF 3D printers Show more
Spectrum S-Flex 98A is a flexible TPU filament with a hardness of 98 Shore A, combining elasticity with high mechanical and chemical resistance and easy printing.
✔️ Hardness 98 Shore A - hard elastomer
✔️ Elongation at break up to 510%
✔️ High resistance to hydrolysis and chemicals
✔️ Low shrinkage and excellent bed adhesion
✔️ Nozzle temperature 210-235 °C, bed 40-60 °C
✔️ Diameter 1.75 mm, spool weight 0.25 kg
✔️ Ideal for seals, bumpers, dampers and flexible parts
✔️ Compatible with most FDM/FFF 3D printers Show more
Product variants
Spectrum S-Flex 98A is a flexible filament based on thermoplastic polyether polyurethane (TPU), combining elasticity with very good impact toughness and thermal insulation. With a hardness of 98 Shore A, it belongs to the category of hard elastomers, which allows easier and faster printing compared to softer flexible materials.
Key features
S-Flex 98A is characterized by a relatively easy and trouble-free 3D printing process. The material offers very good first-layer adhesion to various types of build surfaces (glass, steel, plastic) and low processing shrinkage, which significantly reduces the risk of edge warping. Its high hardness also reduces the risk of filament deformation in the extruder feeding system.
- Hardness: 98 Shore A (hard elastomer)
- Elongation at break: up to 510%
- Hydrolysis resistance: very high
- Chemical resistance: resistant to common industrial oils and chemicals
- Mechanical properties: high tear and tensile strength
- Shrinkage: low
- Recyclability: good
Technical parameters / specifications
| Parameter | Value |
|---|---|
| Diameter | 1.75 mm |
| Spool weight | 0.25 kg |
| Nozzle temperature | 210-235 °C |
| Bed temperature | 40-60 °C |
| Print speed | 20-40 mm/s |
| Recommended layer height | 0.1-0.25 mm |
| Retraction | 1-2 mm, lower speed |
| Cooling | 30-50% |
| Enclosed chamber | not required |
| Drying before printing | 60 °C / 4-6 hours |
| Build surface | PEI, glass with adhesive, steel |
Who is Spectrum S-Flex 98A 1.75mm 0.25kg filament suitable for
This filament is intended for users who need functional flexible parts with high mechanical and chemical resistance. Thanks to its high resistance to hydrolysis and dynamic loads, it is suitable for manufacturing seals, vibration dampers, bumpers, edge protectors, protective cases, snap-fit parts, hinges, flexible straps, sleeves and spacers. It finds applications in mechanical engineering, modelling and in the production of functional prototypes where a combination of flexibility and stiffness is required. For more information, see the categories flexible filaments and TPU.
Tips for use
- Use a direct drive extruder for the best results; with a bowden system, the speed must be significantly reduced.
- Set a lower retraction and slower retraction speed - this reduces the risk of filament tangling.
- Dry the material before printing at 60 °C for 4-6 hours, as TPU is hygroscopic.
- Make sure the nozzle is clean and the filament cannot get stuck or bent in the feeder.
- For better interlayer adhesion, slightly increase the nozzle temperature and reduce cooling.
- We recommend printing slowly and evenly; sudden speed changes affect surface quality with flexible materials.
- Store in a dry place, ideally in vacuum packaging with a silica gel sachet.
