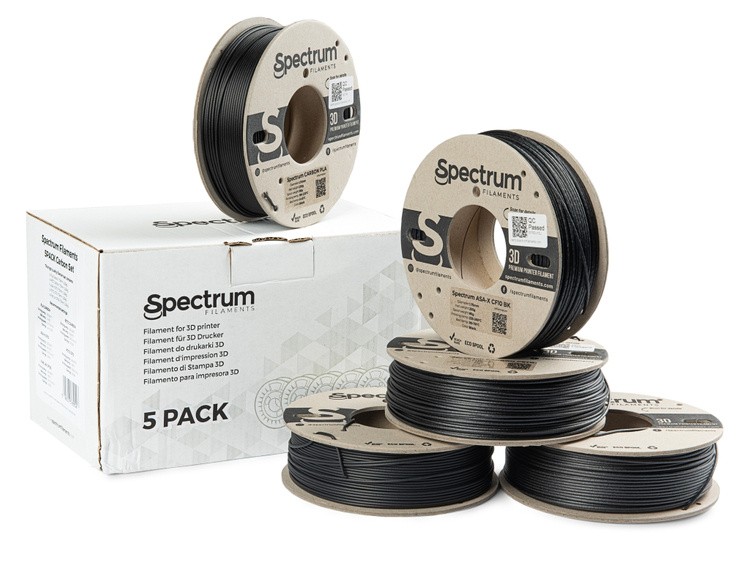

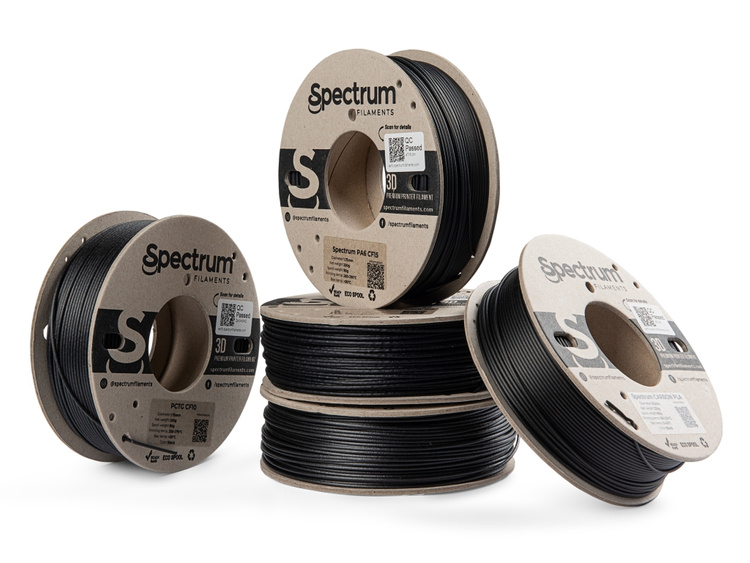

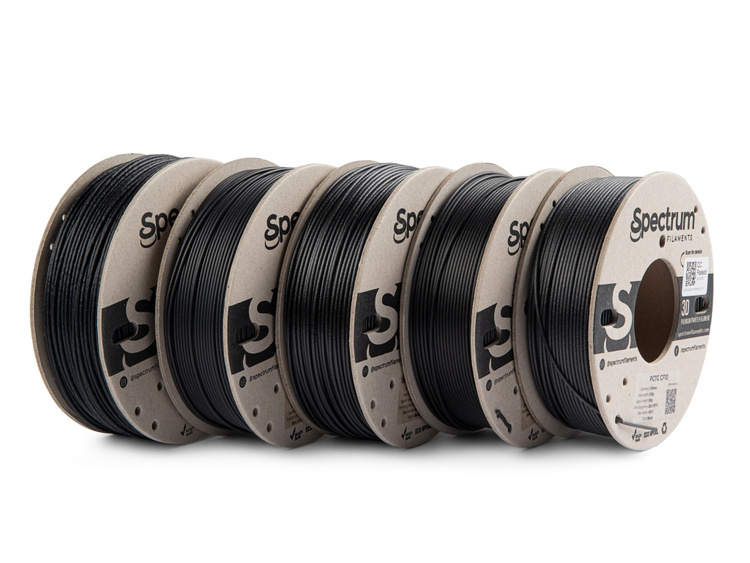

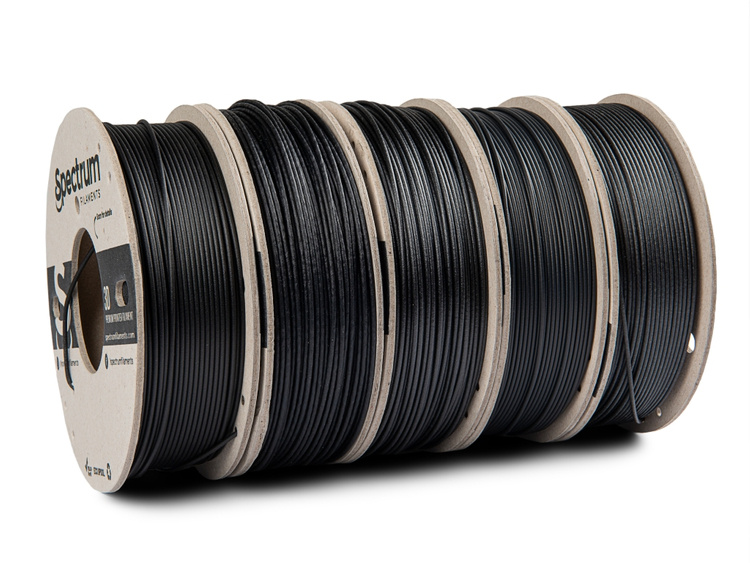

Spectrum Filament 5PACK Carbon Set 1.75mm (5x 0.25kg)
Spectrum Filament 5PACK Carbon Set 1.75mm (5x 0.25kg)
A set of five technical Spectrum filaments filled with carbon fibers, 1.75 mm diameter, weight 5 x 0.25 kg.
✔️ Contains PLA CF, PET-G CF, ASA-X CF10, PCTG CF10 and PA6 CF15S
✔️ Carbon fibers for higher stiffness and dimensional stability
✔️ Reduced thermal expansion and minimal warping
✔️ Ideal for functional prototypes and mechanical parts
✔️ Eco-friendly cardboard spools
✔️ Recommended hardened or steel nozzle
✔️ Suitable for advanced 3D printing users
✔️ Diameter 1.75 mm, 1.25 kg of material in total Show more
A set of five technical Spectrum filaments filled with carbon fibers, 1.75 mm diameter, weight 5 x 0.25 kg.
✔️ Contains PLA CF, PET-G CF, ASA-X CF10, PCTG CF10 and PA6 CF15S
✔️ Carbon fibers for higher stiffness and dimensional stability
✔️ Reduced thermal expansion and minimal warping
✔️ Ideal for functional prototypes and mechanical parts
✔️ Eco-friendly cardboard spools
✔️ Recommended hardened or steel nozzle
✔️ Suitable for advanced 3D printing users
✔️ Diameter 1.75 mm, 1.25 kg of material in total Show more
Spectrum 5PACK Carbon Set is a bundle of five technical filaments reinforced with carbon fibers, allowing you to test various composite materials in a single package. The set contains PLA Carbon, PET-G Carbon, ASA-X CF10, PCTG CF10 and PA6 Low Warp CF15S - ideal for users who want to compare the properties of carbon materials without having to buy full spools.
Key features
The filaments in the set are filled with carbon fibers (CF), which increase stiffness, dimensional stability and mechanical durability of prints. Carbon fibers also reduce thermal expansion, which limits warping and improves the quality of functional parts. The set is supplied on eco-friendly cardboard spools and is suitable for advanced 3D printing users who work with technical carbon filaments.
Each of the included materials has specific properties - from easy-to-print PLA with carbon, through more resistant PET-G Carbon, UV resistant ASA-X CF10, heat resistant PCTG CF10, up to technical PA6 Low Warp CF15S.
Printing parameters
| Parameter | Value |
|---|---|
| Filament diameter | 1.75 mm |
| Spool weight | 5 x 0.25 kg |
| Nozzle temperature (PLA CF) | 210-230 °C |
| Nozzle temperature (PET-G CF) | 230-250 °C |
| Nozzle temperature (ASA-X CF10) | 240-260 °C |
| Nozzle temperature (PCTG CF10) | 250-270 °C |
| Nozzle temperature (PA6 CF15S) | 260-290 °C |
| Bed temperature | 50-105 °C depending on material |
| Recommended print speed | 30-60 mm/s |
| Recommended layer height | 0.15-0.25 mm |
| Recommended nozzle | hardened / steel (0.4 mm and larger) |
| Drying before printing | recommended (especially PA6, PET-G, PCTG) |
Who is the Spectrum filament 5PACK Carbon Set (5x) suitable for
The set is designed for users who want to experiment with various composite materials and find the optimal filament for their projects. It is used for manufacturing functional prototypes, mechanical parts, structural elements, holders, drones, RC models and technical components where high stiffness and dimensional stability are required. Thanks to five different materials, it covers a wide range of applications from decorative parts to technically demanding components exposed to heat, UV radiation or mechanical stress.
Printing tips
- Use a hardened or steel nozzle - carbon fibers will quickly wear out a common brass nozzle.
- The recommended minimum nozzle diameter is 0.4 mm, ideally 0.6 mm for smoother flow.
- Store filaments containing CF (especially PA6) in a dry place - they are hygroscopic.
- Before printing, we recommend drying the materials in a filament dryer.
- Reduce printing speed and increase nozzle temperature for better interlayer adhesion.
- Use an enclosed printer when printing ASA-X, PCTG and PA6 to minimize warping.
- For PA6 Low Warp CF15S, ensure perfect adhesion to the print bed (glue, PA sheet).
