The MK52 24V magnetic heatbed is an original Prusa Research replacement part designed for Original Prusa MK3, MK3S and MK3S+ printers. It combines 24V heating element (6.25 A) with an integrated magnetic layer for holding flexible print sheets, and ships as a complete assembly including thermistor, wiring and mounting hardware.

Original Prusa Research replacement part

This is an original part straight from Josef Prusa's workshop, manufactured to the same quality you know from Original Prusa production printers. The MK52 heatbed is the heart of the print bed, and its precise dimensions, flatness and even heat distribution are key to successful 3D printing. Please verify compatibility before purchase - this version is intended exclusively for 24V MK3, MK3S and MK3S+ printers.

Magnetic layer for flexible print sheets

The heatbed contains 28 pressed-in 45SH grade neodymium magnets, secured with Loctite HY 4090 adhesive. The magnets hold flexible steel sheets (PEI smooth, satin, textured) firmly in place even at high temperatures up to 110 °C. After printing, simply flex the sheet and the print releases on its own - no prying with a spatula, no surface damage.

Even heating with 24V heating element

The 24V power supply means faster temperature ramp-up and more stable regulation than older 12V variants. At 6.25 A, the heatbed reaches 60 °C within tens of seconds and handles even demanding materials such as ABS, ASA, nylon or polycarbonate. The maximum operating temperature is 120 °C, with a recommended working limit of 110 °C.

Integrated thermistor and complete wiring

The heatbed comes with the thermistor already secured - fixed with aluminum and Kapton tape, ensuring accurate measurement of the actual heatbed temperature. The package also includes a pre-assembled screw-on power cable for connection to the Einsy RAMBo board, textile sleeving to protect the wiring harness, and a cable entry cover with clip.

Precise dimensions for large prints

The 254 × 264.4 mm usable area corresponds to the standard print volume of the MK3 series. The thickness of just 3.175 mm keeps thermal inertia low and allows faster temperature changes between layers. Milled edges and precise mounting hole spacing ensure that the heatbed sits stress-free on the printer's Y-carriage.

Compatibility with PEI flexible sheets

The MK52 is designed for Prusa steel flexible sheets. For PLA and PETG we recommend the smooth PEI sheet, for ABS or flexible materials the textured PEI sheet, and for carbon-filled composites the satin powder-coated sheet. The magnetic field is dimensioned so that the sheet stays in place even during sharp print head direction changes.

Easy installation with complete mounting kit

Replacing the heatbed with this assembly takes approximately 60 minutes. The package contains all the required hardware - 5 M3x10 screws, M3n and M3nN nuts, M3/3.2/9/0.8 washers and the cable outlet cover. Just follow the official guide at help.prusa3d.com, where you will find step-by-step photo instructions for your specific printer model.

Who this heatbed is intended for

A replacement MK52 will be appreciated by any Prusa MK3/MK3S/MK3S+ owner whose existing heatbed has a damaged magnetic layer, faulty thermistor, worn-through cable or uneven heating. It is also a typical upgrade for older 12V printers after switching to 24V electronics. Note - the part is NOT compatible with MK2/MK2.5/MK2.5S, MMU2S, MK4, MK3.9 or CORE One.

Parameter	Value
Model	MK52 (24V assembly)
Compatibility	Original Prusa MK3, MK3S, MK3S+
Height	264.4 mm
Width	254 mm
Thickness	~3.175 mm
Voltage	24 V
Current	6.25 A
Maximum temperature	120 °C
Recommended working temperature	110 °C
Magnets	28x 45SH neodymium block magnet, Loctite HY 4090 adhesive
Thermistor	Pre-installed, secured with aluminum and Kapton tape
Manufacturer	Prusa Research a.s.

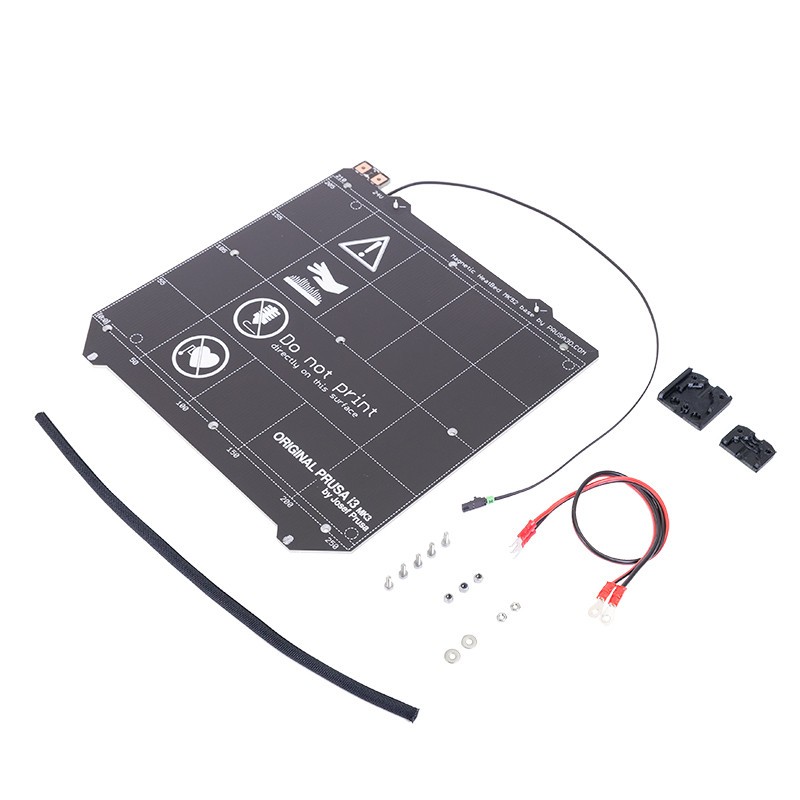

Package contents

• MK52 24V magnetic heatbed (1 pc)
• Heatbed-Einsy power cable, screw-on (1 pc)
• Heatbed thermistor - already secured (1 pc)
• Textile sleeving (300 × 5 mm, 1 pc)
• Heatbed cable cover (1 pc)
• Heatbed cable cover clip (1 pc)
• M3nN nuts (3 pcs), M3n nuts (2 pcs)
• M3x10 screws (5 pcs)
• M3/3.2/9/0.8 washers (2 pcs)
