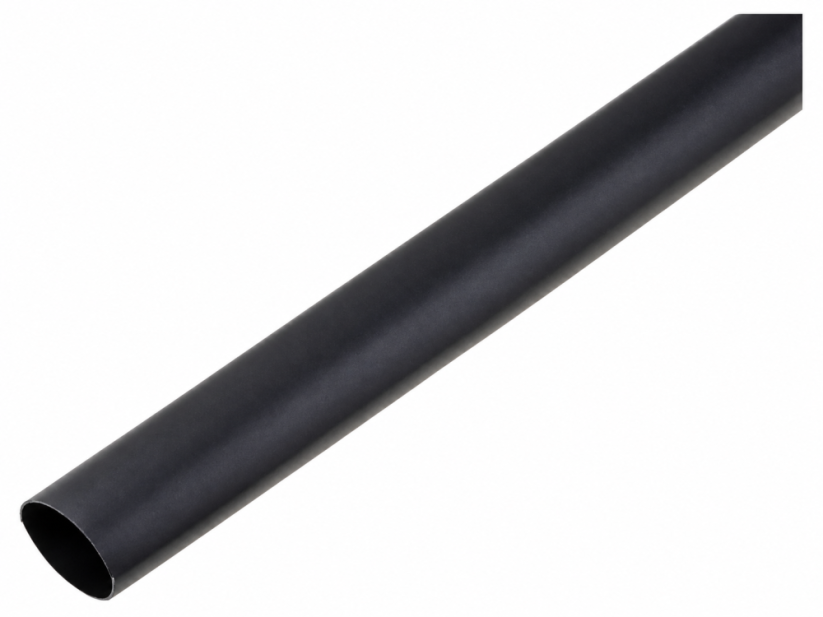

Heat shrink tubing with a diameter of 1.0/0.6 mm and a length of 10 cm is an essential helper for insulating soldered joints, repairing wiring of heating elements, thermistors and thin conductors in 3D printers. After heating with a heat gun or lighter, it shrinks to half its original diameter and creates a firm, mechanically resistant insulation with heat resistance up to 125 °C.

Ideal for repairing 3D printer electronics

The tubing is primarily intended for insulating thin conductors in 3D printer electronics, such as wiring of thermistors, heater cartridges, hotends or endstops. The small diameter of 1.0 mm in the initial state shrinks to 0.6 mm after heating and precisely wraps even very thin joints without unnecessary slack.

Shrink ratio 2:1

The initial inner diameter of 1.0 mm shrinks to 0.6 mm after heating, which corresponds to the standard 2:1 shrink ratio. Thanks to this, the tubing safely wraps both the conductor itself and a slightly thicker soldered joint or connector terminal.

Wide temperature range -40 to 125 °C

The tubing material retains its mechanical properties and does not deform in the range of -40 °C to 125 °C. It can therefore withstand operating temperatures around the hotend and heated bed, and can also be used in applications located outdoors or in machine rooms.

Quality insulation properties

The K-102 type tubing ensures reliable electrical insulation of soldered joints and protects them against oxidation, moisture and mechanical wear. It adheres firmly to the surface of the conductor and does not create cavities where moisture could condense.

Easy application

Simply slide the tubing onto the conductor before soldering, then after completing the joint move it to the desired location and heat it evenly with a heat gun (ideally to 80-120 °C). In an emergency, a regular lighter will also do, but be careful not to burn the tubing with the flame.

Black color for a professional look

The classic black color ensures a clean and professional appearance of the repaired joints. The tubing is opaque, so it reliably covers the soldered joint or damaged conductor insulation.

Sold in 10 cm pieces

One piece corresponds to a length of 10 cm. When ordering more pieces, you will receive the tubing as a whole, so you can cut the individual parts exactly according to the needs of a specific repair or wiring modification.

Universal use not only in 3D printing

In addition to 3D printers, the tubing also finds use in the repair of modelling electronics, RC models, LED strips, headphones or small household appliances. It is suitable wherever it is necessary to insulate a thin conductor or a small soldered joint.

Parameter	Value
Type	K-102
Diameter before shrinking	1.0 mm
Diameter after shrinking	0.6 mm
Shrink ratio	2:1
Length of one piece	10 cm
Color	black
Operating temperature range	-40 °C to 125 °C
Recommended shrink temperature	80-120 °C
Application	heat gun, lighter

Package contents

1x heat shrink tubing K-102, diameter 1.0/0.6 mm, length 10 cm, black color. When ordering a larger number of pieces, the tubing is shipped as a whole (one continuous piece in the total length corresponding to the number of ordered pieces).
