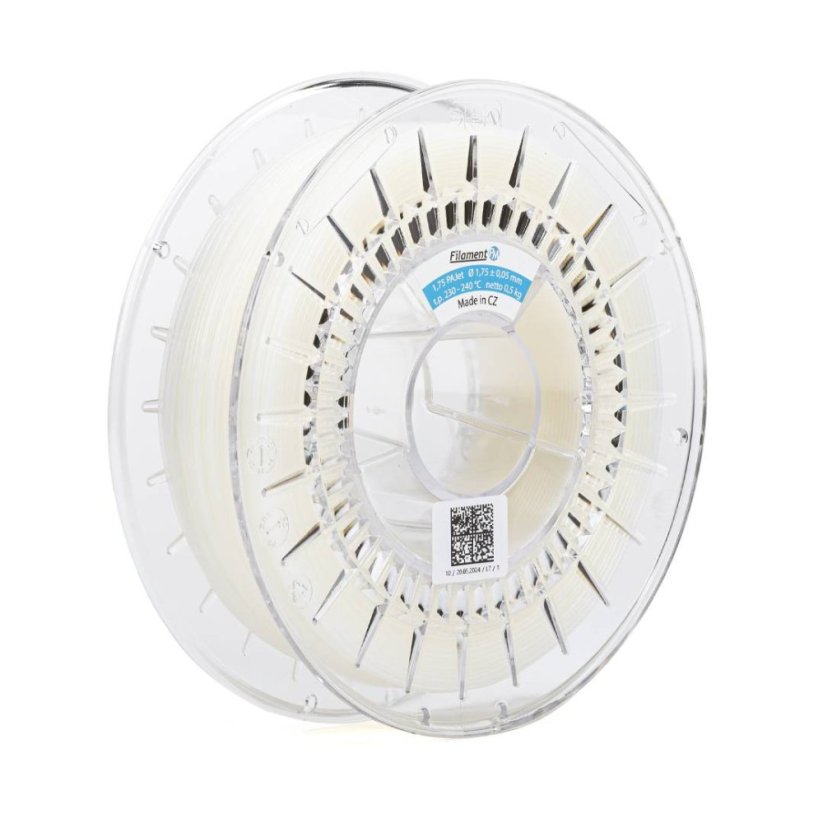

Filament-PM PAJet 160 Nylon | Natur
Filament-PM PAJet 160 Nylon | Natur
Filament-PM PAJet 160 Nylon is an engineering polyamide with high thermal and mechanical resistance, suitable for functional technical parts.
✔️ Thermal resistance up to 160 °C
✔️ High resistance to abrasion and mechanical wear
✔️ Resistance to chemicals and external influences
✔️ Smooth surface ideal for sliding and rolling components
✔️ Printing properties similar to ABS
✔️ Diameter 1.75 mm with tolerance ± 0.03 mm
✔️ Suitable for advanced users and industrial applications
✔️ Czech manufacturer Plasty Mladec with over 30 years of experience Show more
Filament-PM PAJet 160 Nylon is an engineering polyamide with high thermal and mechanical resistance, suitable for functional technical parts.
✔️ Thermal resistance up to 160 °C
✔️ High resistance to abrasion and mechanical wear
✔️ Resistance to chemicals and external influences
✔️ Smooth surface ideal for sliding and rolling components
✔️ Printing properties similar to ABS
✔️ Diameter 1.75 mm with tolerance ± 0.03 mm
✔️ Suitable for advanced users and industrial applications
✔️ Czech manufacturer Plasty Mladec with over 30 years of experience Show more
Filament-PM PAJet 160 Nylon is an engineering polyamide thermoplastic from the Czech manufacturer Plasty Mladec, combining high thermal resistance, mechanical strength and abrasion resistance. Its printing properties are similar to ABS, but with significantly better resistance to temperature and chemicals.
Key properties

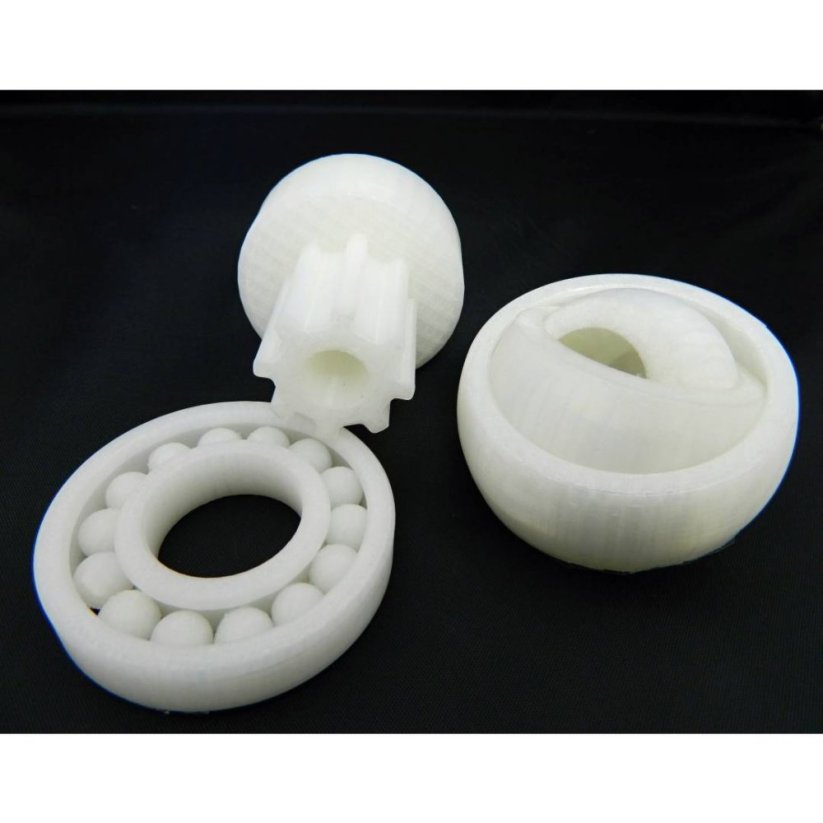

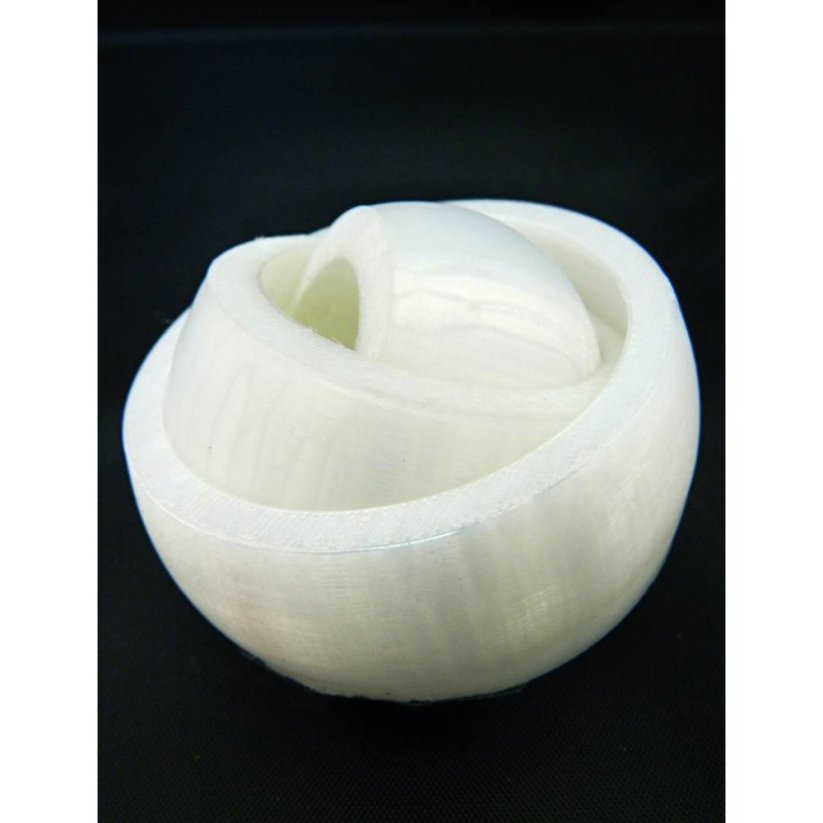

PAJet 160 belongs to the nylon filaments designed for technical and functional parts. The material withstands long-term loads at temperatures up to 160 °C and resists pressure, external influences, chemicals and mechanical wear. Thanks to its smooth surface, it is ideal for producing rolling and sliding components such as bearings, gears, bushings or moving mechanisms. Nylon is hygroscopic, so it must be stored properly before printing and dried when needed.
Printing parameters
| Parameter | Value |
|---|---|
| Filament diameter | 1.75 mm |
| Diameter tolerance | ± 0.03 mm |
| Nozzle temperature | 230 - 240 °C |
| Bed temperature | 110 - 120 °C |
| Recommended print speed | 20 - 40 mm/s |
| First layer speed | 8 - 20 mm/s |
| Layer height | 0.15 - 0.25 mm |
| Part cooling fan | off / minimal |
| Enclosed chamber | recommended |
| Drying before printing | 70 - 80 °C / 6 - 8 h |
| Thermal resistance | up to 160 °C |
Who is Filament-PM PAJet 160 Nylon suitable for

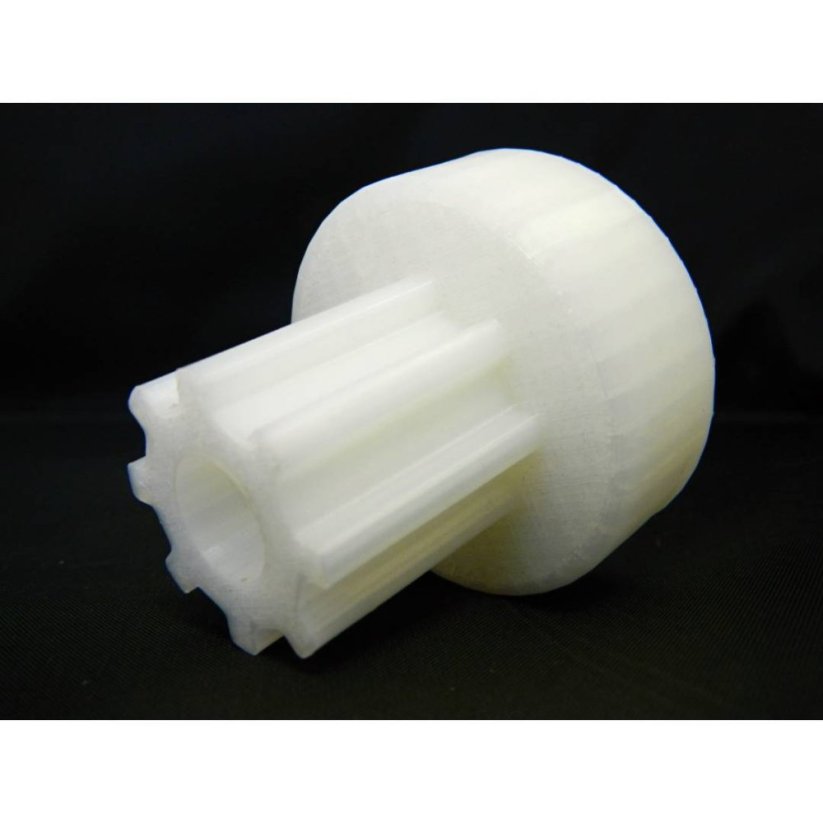

The material is intended for advanced users who need functional parts with high mechanical and thermal resistance. It is used in industrial applications, mechanical engineering, automotive prototyping and the production of spare parts. Typical applications include gears, sliding bushings, bearings, brackets, carriers, under-hood automotive parts or components exposed to higher operating temperatures.
Printing tips
- Always dry the filament before printing - nylon strongly absorbs moisture from the air.
- Use an enclosed print chamber for stable ambient temperature and better interlayer adhesion.
- For bed adhesion, the Magigoo PA glue stick or similar binder designed for nylons has proven effective.
- Turn off the part cooling fan or reduce it significantly - this increases interlayer strength.
- Choose a lower print speed (20 - 40 mm/s) for quality results without under-extrusion.
- Store in a sealed package with desiccant, ideally in a dry box.
- Choose a hardened nozzle - the fine filler stresses a standard brass nozzle less over time, but a more durable option is still an advantage.
- For comparison with other technical materials, visit the categories Nylon, Polycarbonate or Carbon.
