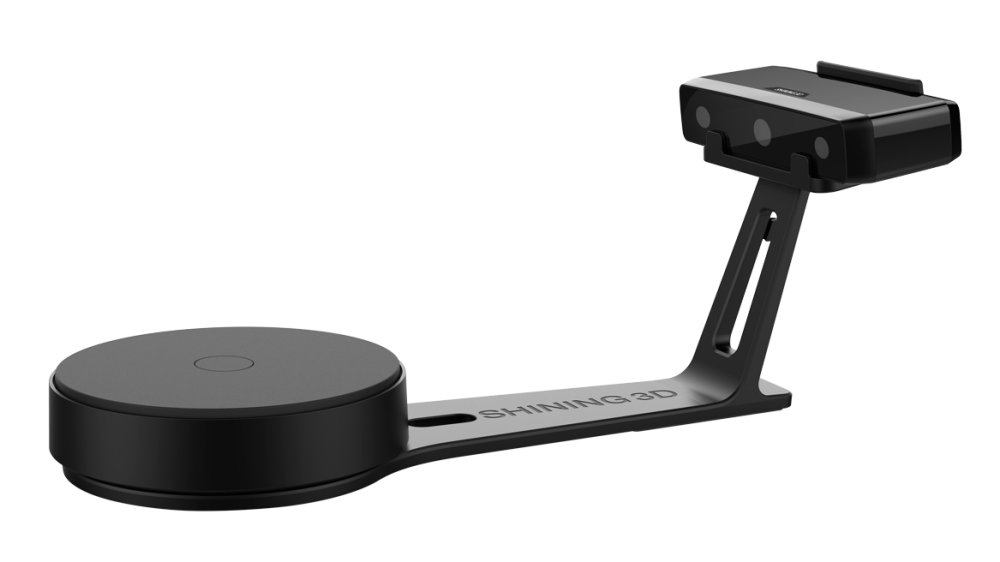

The Shining3D Einscan SE V2 is a desktop 3D scanner with white structured light, offering accuracy down to 0.1 mm and turntable scanning speed under 45 seconds. An ideal solution for makers, engineers, designers and schools who need to reliably digitize real objects into OBJ, STL or PLY formats - without lasers and without complex calibration.

Scanning accuracy up to 0.1 mm

The Einscan SE V2 achieves single-shot accuracy of up to 0.1 mm, placing it at the top of its price range. Thanks to a point distance of 0.17 to 0.20 mm, you get a detailed mesh that can be directly used for reverse engineering, dimensional inspection or preparation of files for 3D printing from materials such as PLA, PETG or ABS.

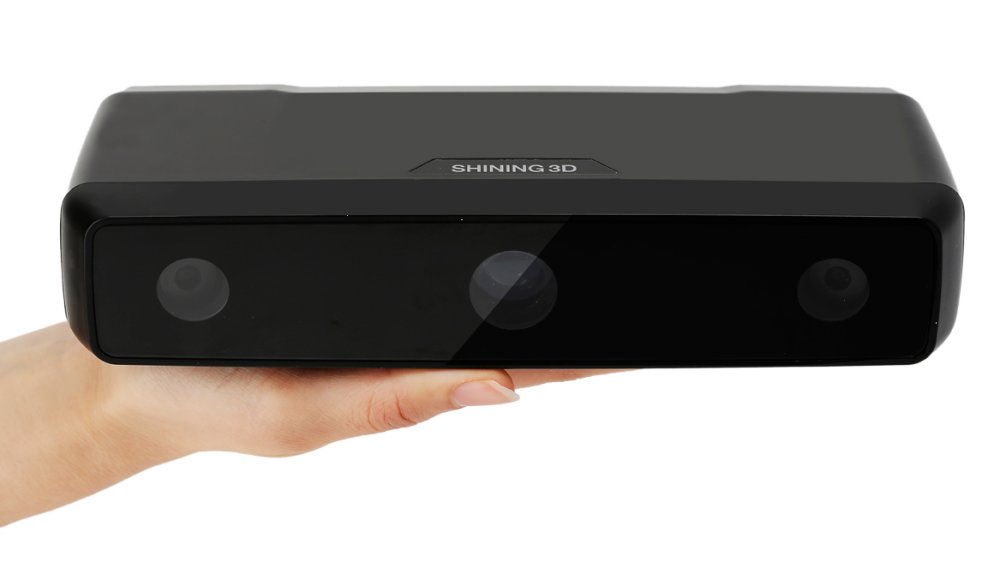

Two scanning modes - with or without turntable

The scanner supports Fixed Scan with Turntable for fully automatic digitization of smaller objects, as well as Fixed Scan without Turntable, where you can position the scanner freely around the object. The automatic mode completes a full rotation in under 45 seconds, while a single-shot takes less than 1 second.

White LED light - safe for the eyes

Instead of a laser, the Einscan SE V2 uses visible white LEDs with structured light technology. Scanning is therefore completely safe for the operator's eyes as well as for sensitive objects. The illumination is strong enough for a wide range of surfaces and colors, while the working distance of 290 to 480 mm provides comfort during handling.

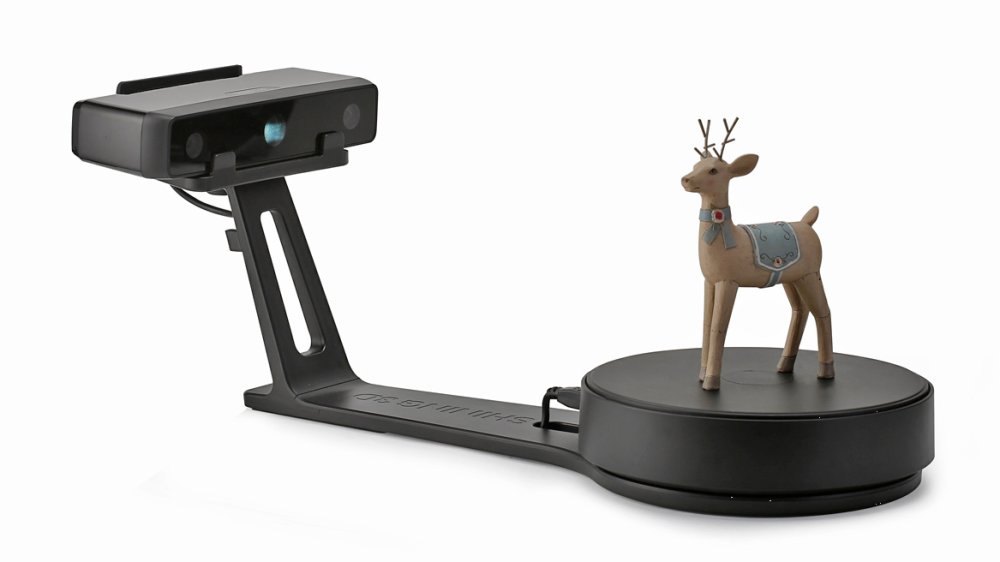

Scanning volume from 30 mm up to 700 mm

The minimum scanning volume is 30 × 30 × 30 mm, with the turntable you can handle objects up to 200 × 200 × 200 mm, and in turntable-free mode up to 700 × 700 × 700 mm. The turntable load capacity is 5 kg, so you can easily scan figurines, components, sculptures and even larger mechanical parts.

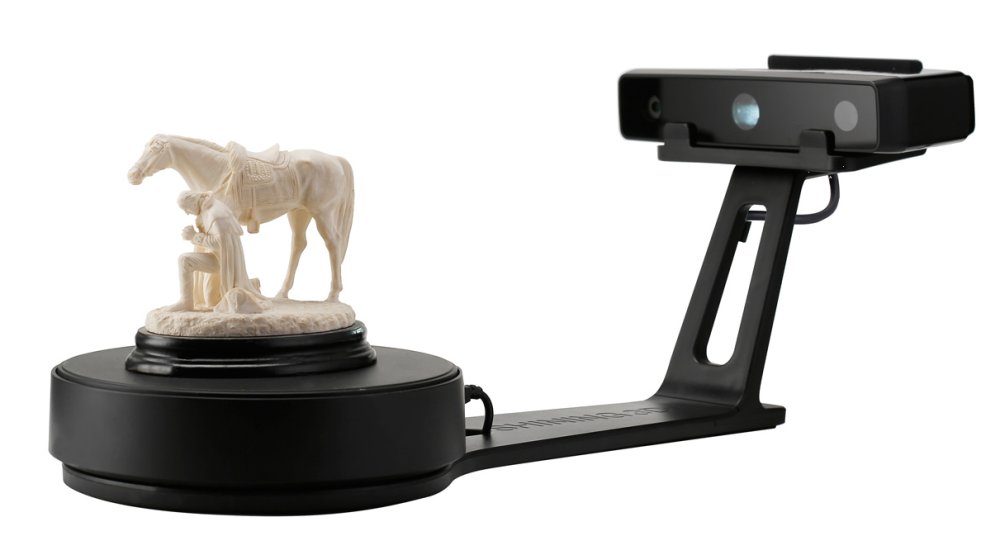

Export to standard 3D formats

The scanner outputs are compatible with all common CAD, 3D printing and modeling tools. You can save to OBJ, STL, ASC, PLY and 3MF formats - the finished model can be sent directly to a slicer or to modeling software for further editing before printing with ASA, nylon or carbon filaments.

Easy installation and intuitive software

Connect the scanner to a Windows 7/8/10 (64-bit) computer using a standard USB 2.0/3.0 cable. The recommended configuration is a dual-core Intel i5 processor or higher, 8 GB RAM and a dedicated NVIDIA graphics card with at least 1 GB of memory. Scan alignment is performed automatically using Feature alignment or manually - depending on your needs.

Solid construction for everyday work

The robust aluminum-plastic body, weighing approximately 2.5 kg and measuring 570 × 210 × 210 mm, ensures scanning stability. Power is supplied by an external 12 V DC / 3.33 A adapter with total consumption of around 40 W. The scanner is designed for long-term use in a studio, workshop or school classroom.

Technical parameters

Parameter	Value
Scanning modes	Fixed Scan with turntable / without turntable
Alignment	Feature, manual
Single-shot accuracy	≤ 0.1 mm
Minimum scanning volume	30 × 30 × 30 mm
Maximum scanning volume	200 × 200 × 200 mm (with turntable) / 700 × 700 × 700 mm (without turntable)
Single scan range	200 × 150 mm
Scanning speed	Single-shot < 1 s, full rotation < 45 s
Point distance	0.17 - 0.20 mm
Camera resolution	1.3 MP
Light source	White LED (no laser)
Working distance	290 - 480 mm
Turntable load capacity	max. 5 kg
Output formats	OBJ, STL, ASC, PLY, 3MF
Interface	USB 2.0 / 3.0
PC requirements	Windows 7/8/10 (64-bit), i5+, 8 GB RAM, NVIDIA GPU > 1 GB
Power supply	12 V DC, 3.33 A, approx. 40 W
Weight	approx. 2.5 kg
Dimensions	570 × 210 × 210 mm
EAN	6970163088112

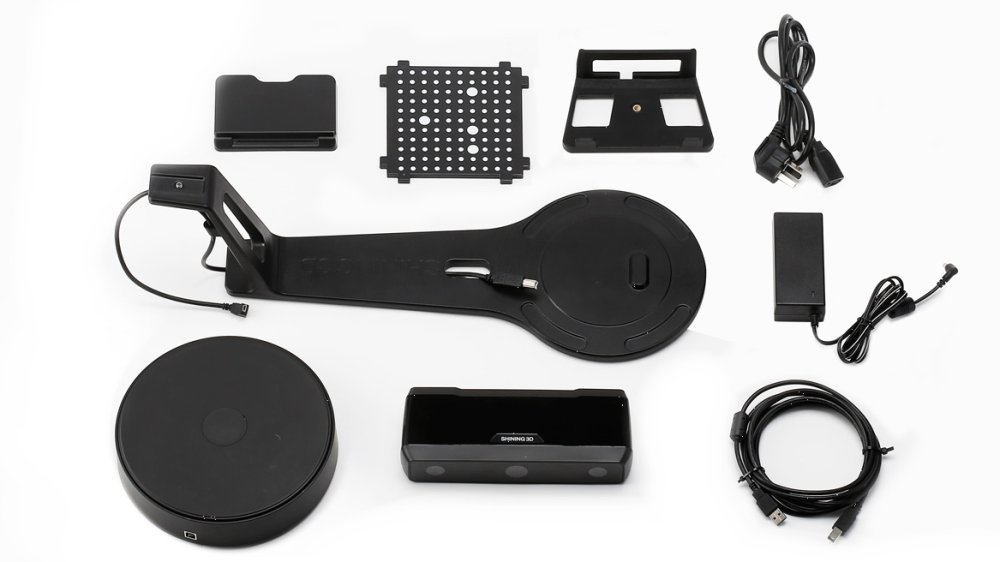

Package contents

• Shining3D Einscan SE V2 3D scanner
• Turntable
• Power adapter 12 V DC / 3.33 A
• USB cable for PC connection
• Calibration board
• EXScan SE software package (license)
• Documentation and quick start guide
