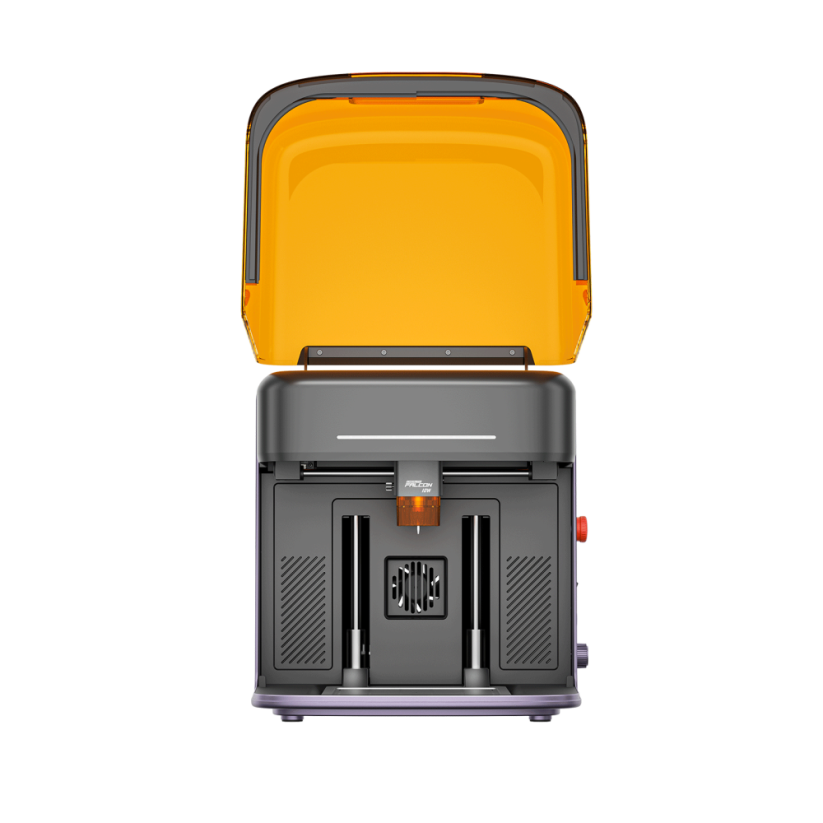

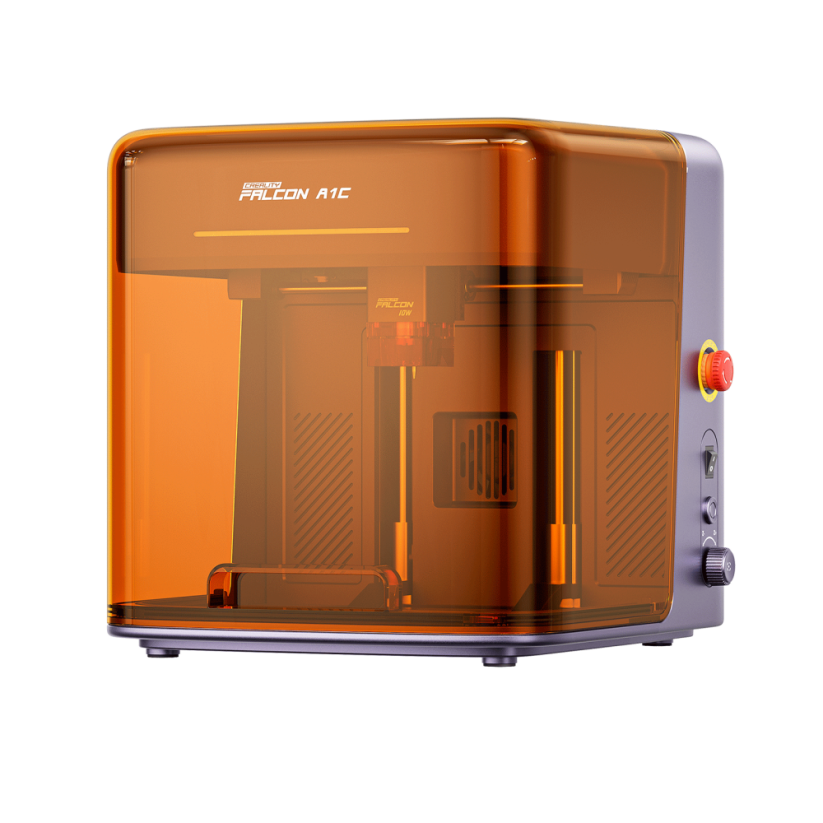

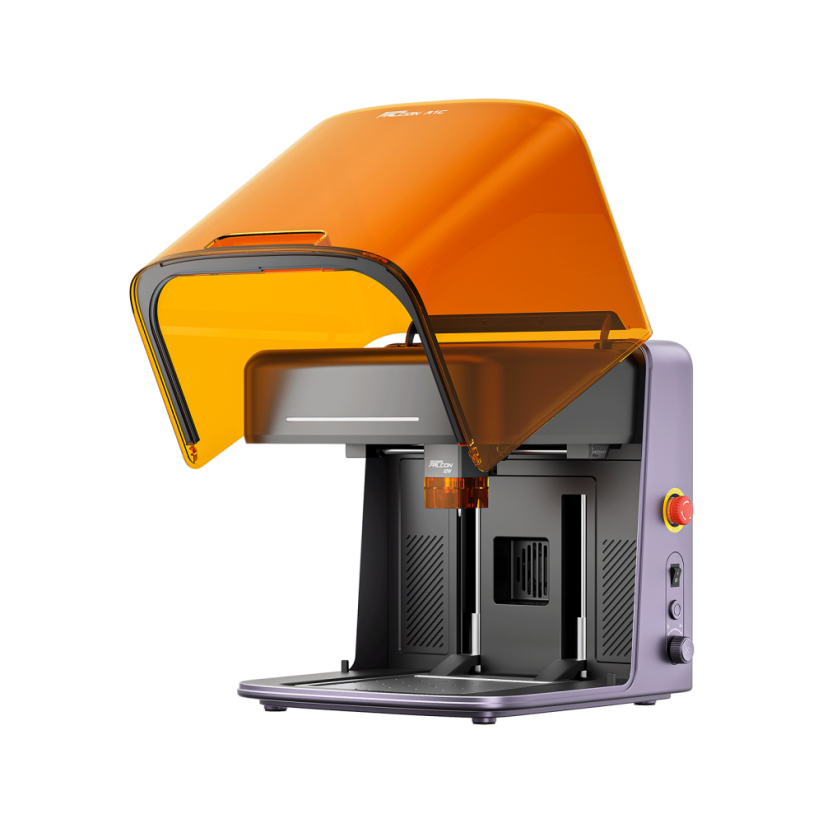

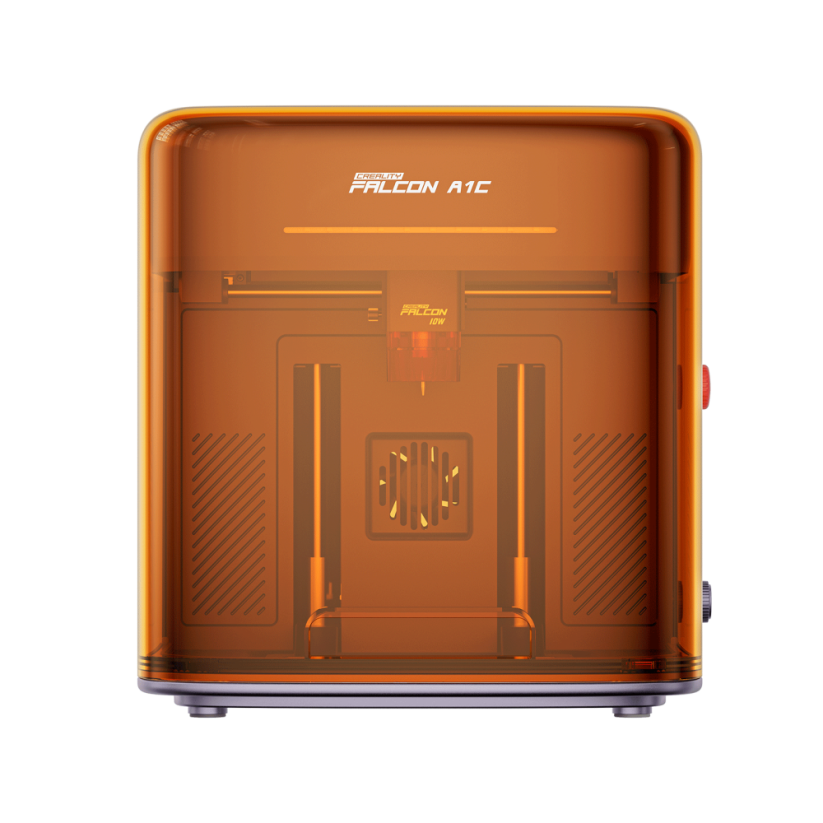

The Creality Falcon A1C with a 5W diode laser and integrated AI camera is a compact desktop laser engraver that combines precise mechanics, automatic focusing and smart material recognition. Its enclosed design, Class 1 safety certification and free laser module swap make it an ideal choice for hobbyists, small workshops and educational institutions.

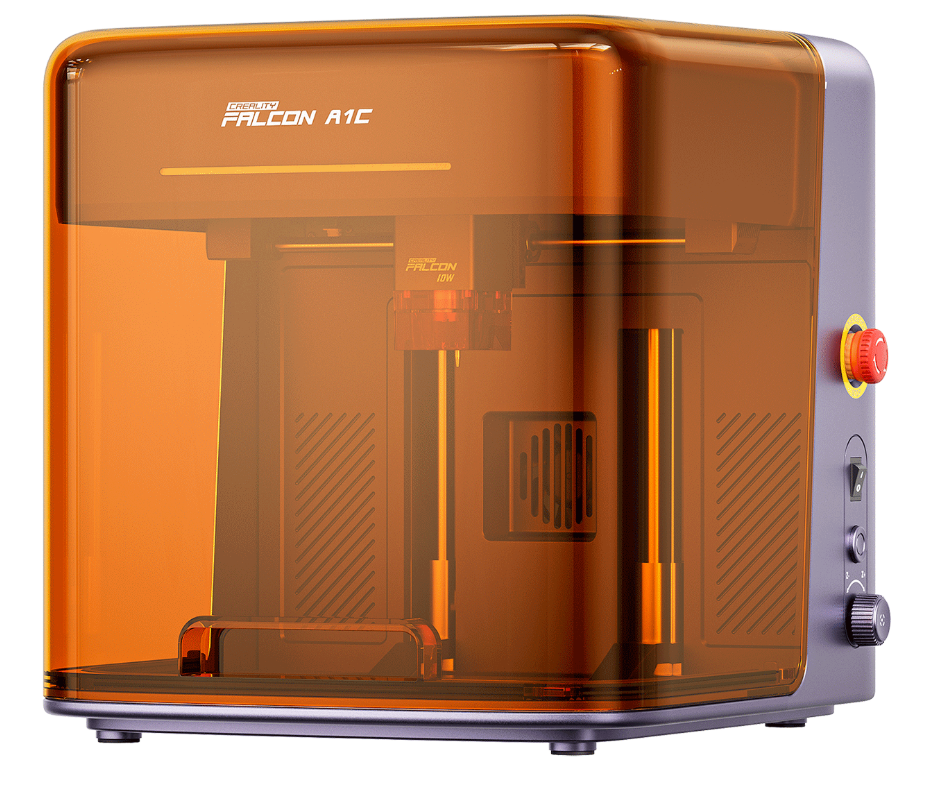

Enclosed Class 1 design for safe operation

The Falcon A1C is a fully enclosed machine with Class 1 safety classification that can be operated even in residential spaces. The construction protects the operator from stray laser radiation and also limits the spread of smoke and odor when engraving wood, leather or acrylic. Safety is further enhanced by flame detection, a tilt sensor and a USB safety lock.

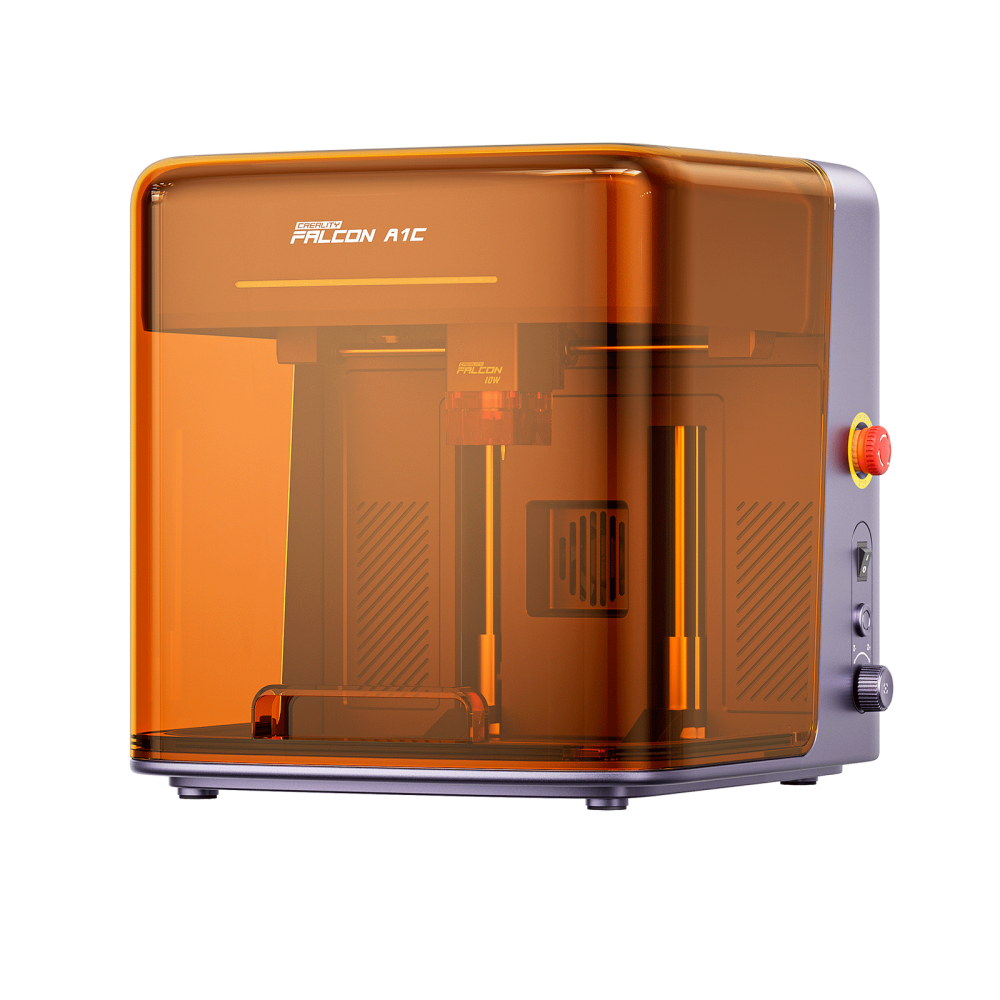

Built-in HD camera with AI assistance

The integrated HD camera displays the work area in real time and allows precise visual positioning of the design directly on the material. Thanks to the Material Recognition feature, the printer automatically identifies the type of material inserted and suggests recommended laser parameters, eliminating tedious tuning of power and speed.

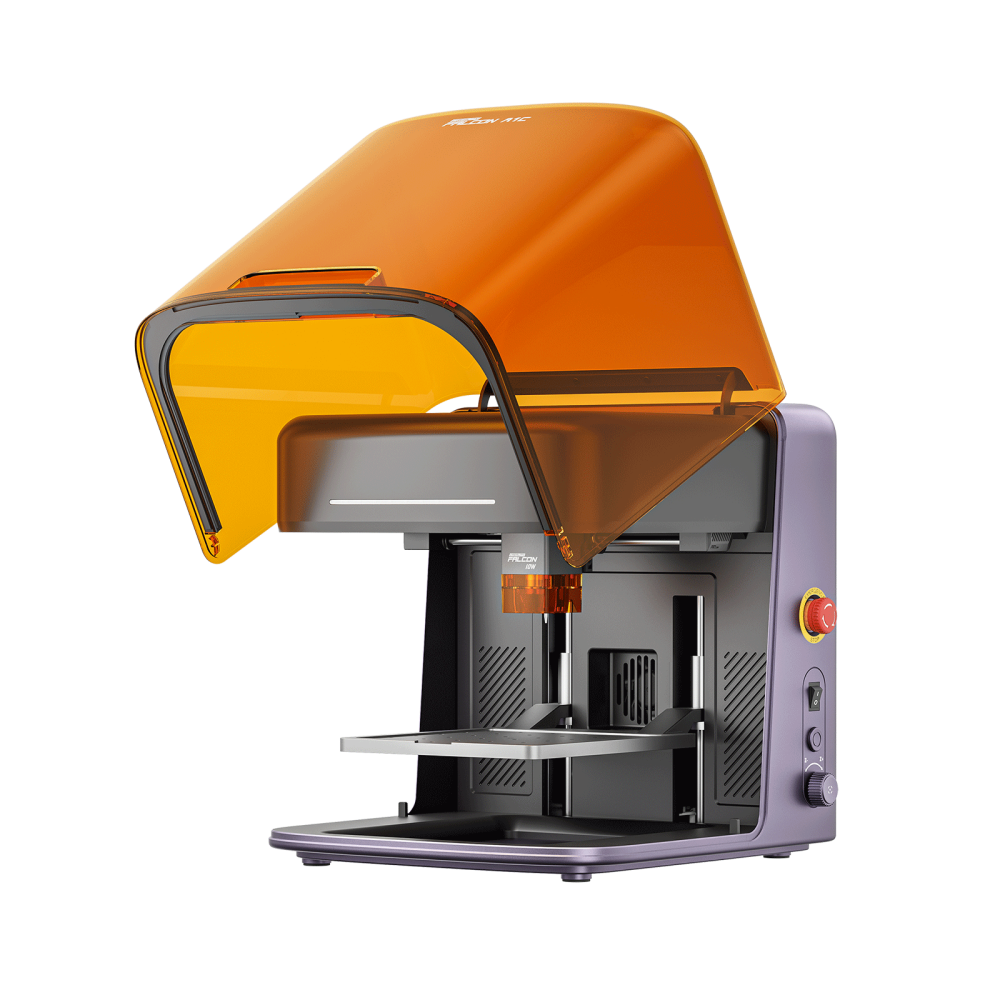

5W diode laser with tool-free swap

The core of the machine is a 5W diode laser module that handles engraving on wood, leather, paper, cardboard, felt, stainless steel or anodized aluminum. The module can be swapped without tools for an optional 1.2W or 10W variant depending on the type of task - from fine etching to cutting thin plywood sheets.

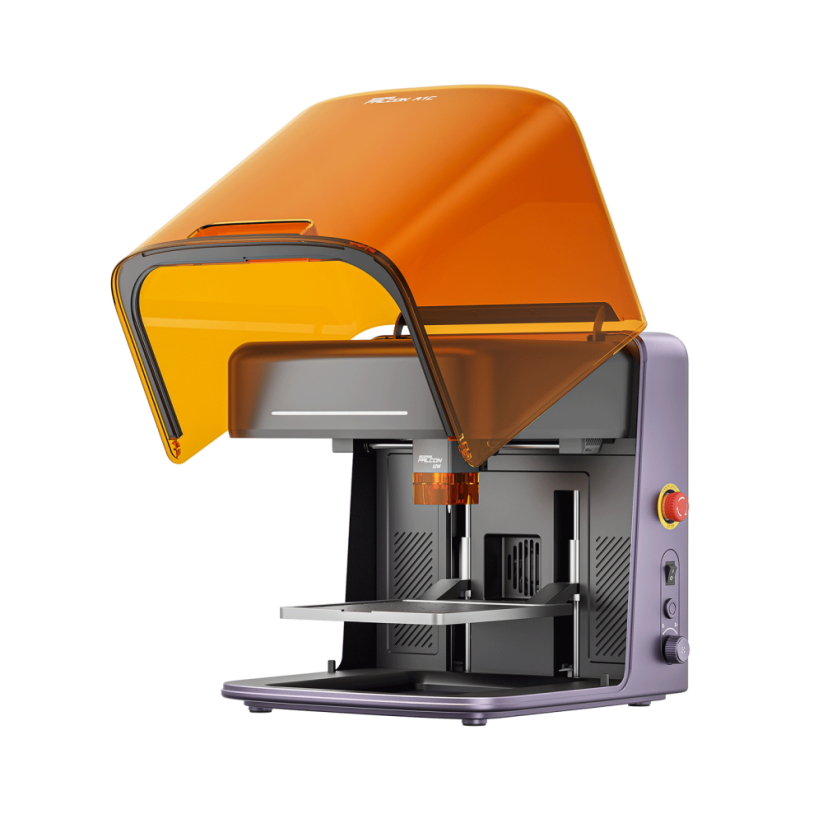

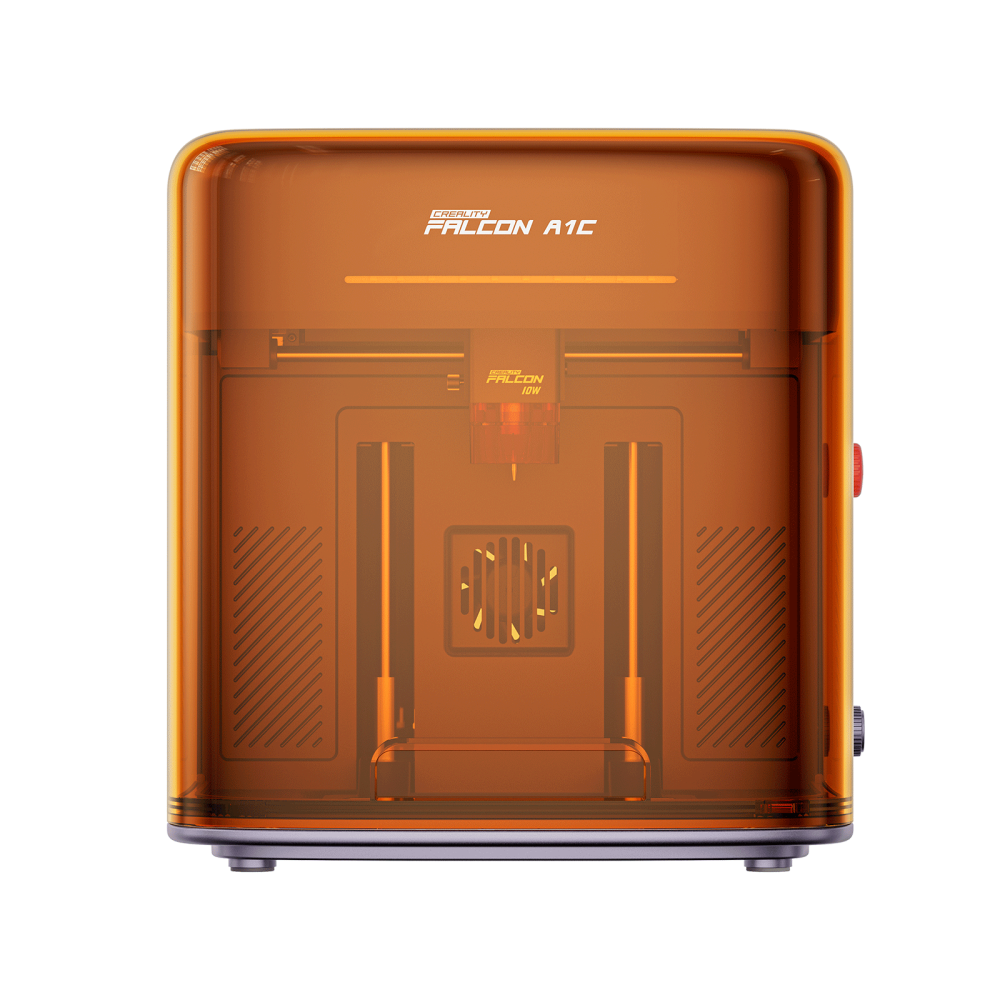

Autofocus and automatic lifting platform

Automatic focusing combined with an intelligent lifting platform (Automatic Smart Lifting Platform) frees the user from having to manually set the nozzle-to-material distance. The machine finds the optimal focal point according to the workpiece thickness on its own, which fundamentally speeds up job preparation and increases result repeatability.

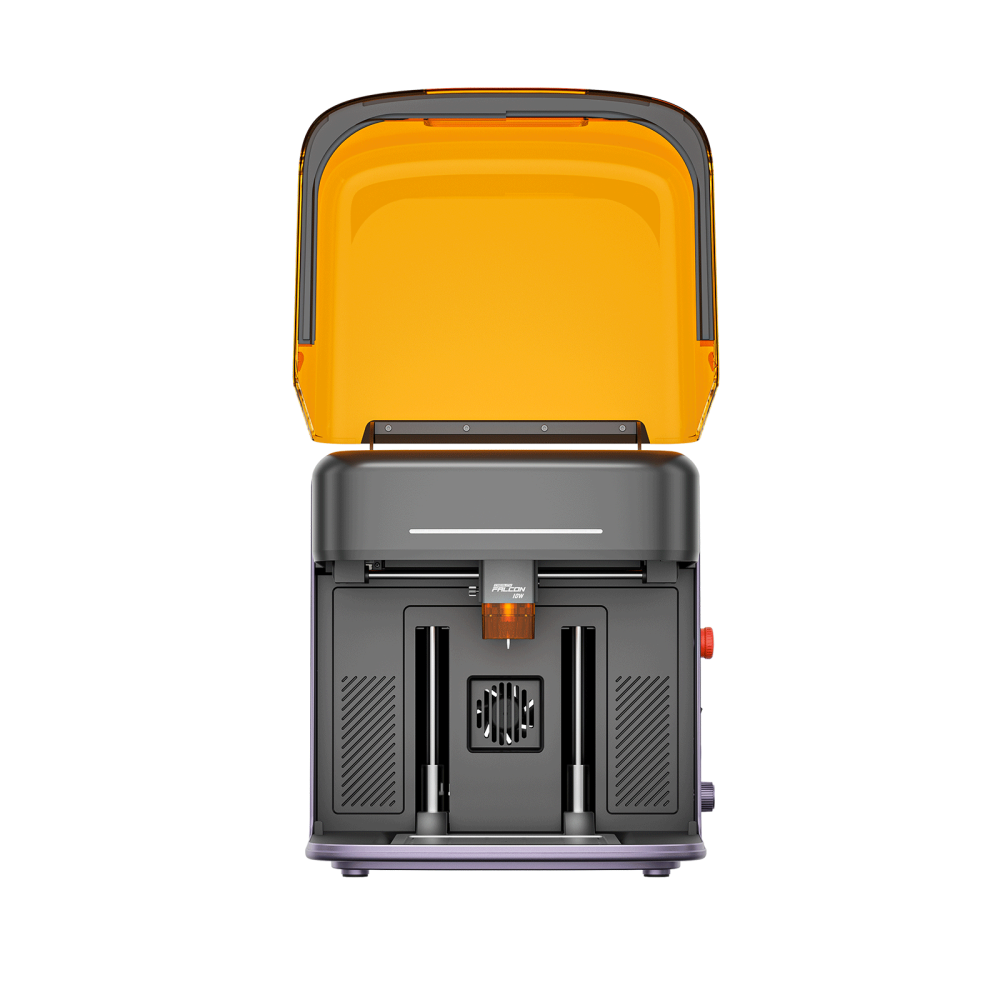

Engraving speed up to 15,000 mm/min

The working speed reaches 15,000 mm/min, so the Falcon A1C can handle larger production batches or detailed raster images in a reasonable time. The rigid Cartesian mechanics and precise stepper motors ensure sharp edges and stable geometry even at high feed rates.

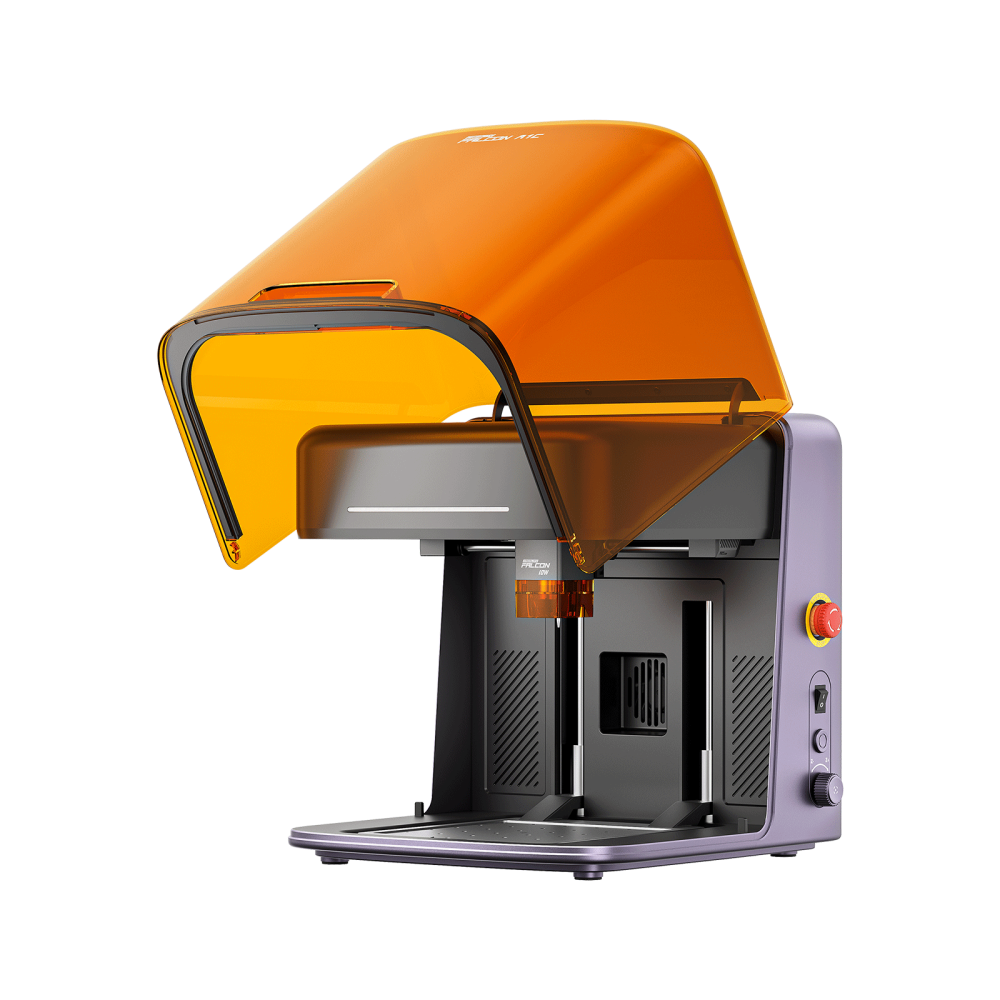

AI Smart Fill & Layout for intelligent arrangement

The AI Smart Fill & Layout software feature automatically arranges repeating designs on the 150 × 150 mm work area so that material is used as efficiently as possible. The combination of camera image and AI algorithm minimizes waste and simplifies serial production of small parts.

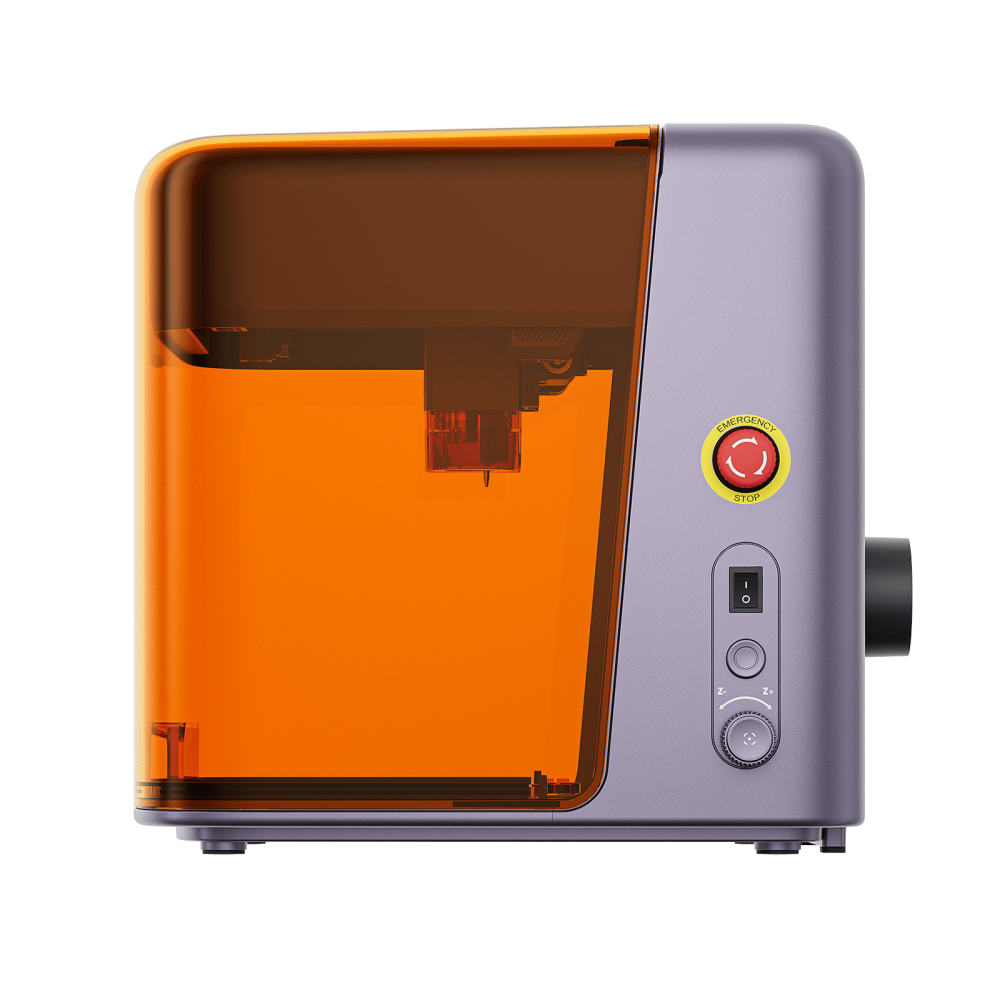

Wi-Fi, Bluetooth and USB connectivity

The machine supports wireless connection via Wi-Fi and Bluetooth Low Energy, complemented by a classic USB interface. It can be controlled from a computer (Windows 10 or newer, macOS 11 or newer) via the proprietary Falcon Design Space and the extended LightBurn, or directly from a mobile app.

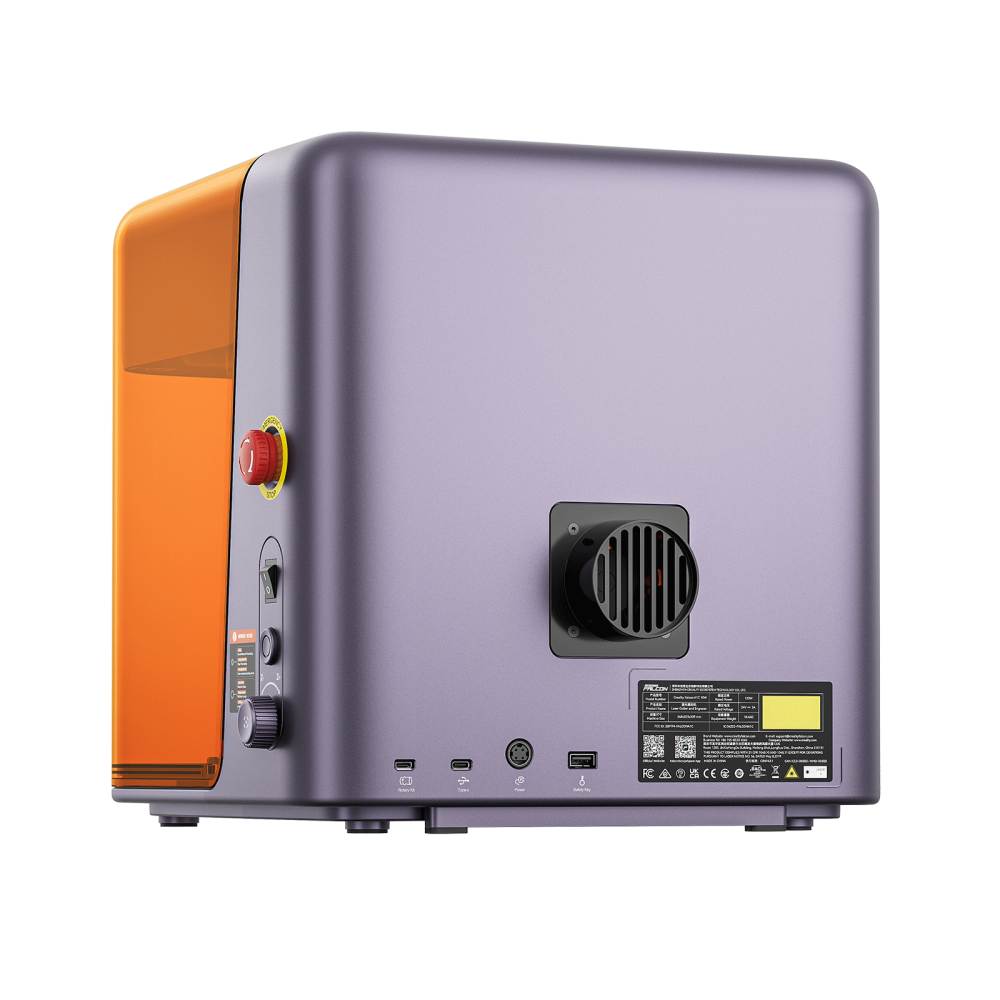

Compact dimensions and low weight

External dimensions of 336 × 377 × 341 mm and a weight of 9.8 kg allow the Falcon A1C to be placed on a regular workbench without the need for a dedicated workshop. Despite this, it offers a 150 × 150 mm working area and a maximum workpiece height of 148 mm, so it can also handle bulkier 3D objects.

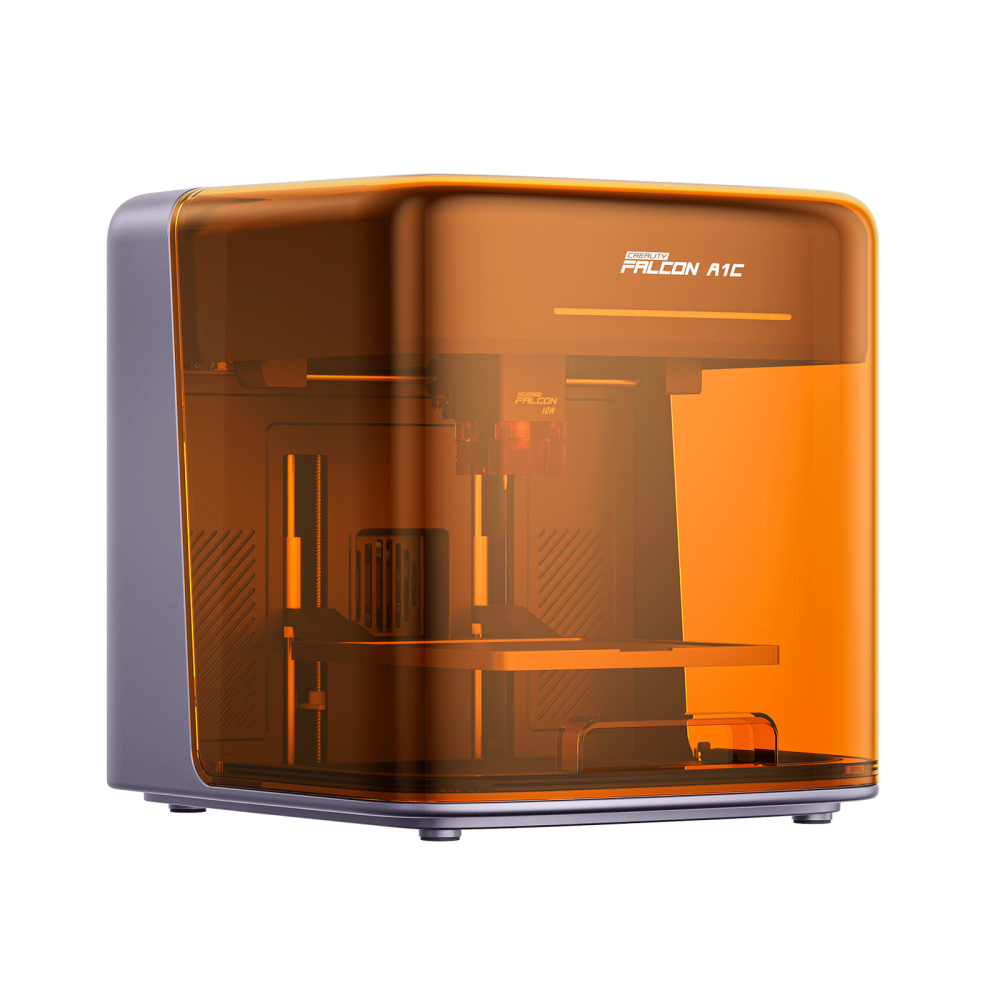

Expandability with rotary axis and extraction

The system is ready for optional accessories - rotary kits for engraving mugs and cylindrical objects, an air purifier, an extraction fan and flexible clamping fixtures. Users can thus build their engraving workstation according to their own needs.

Technical specifications

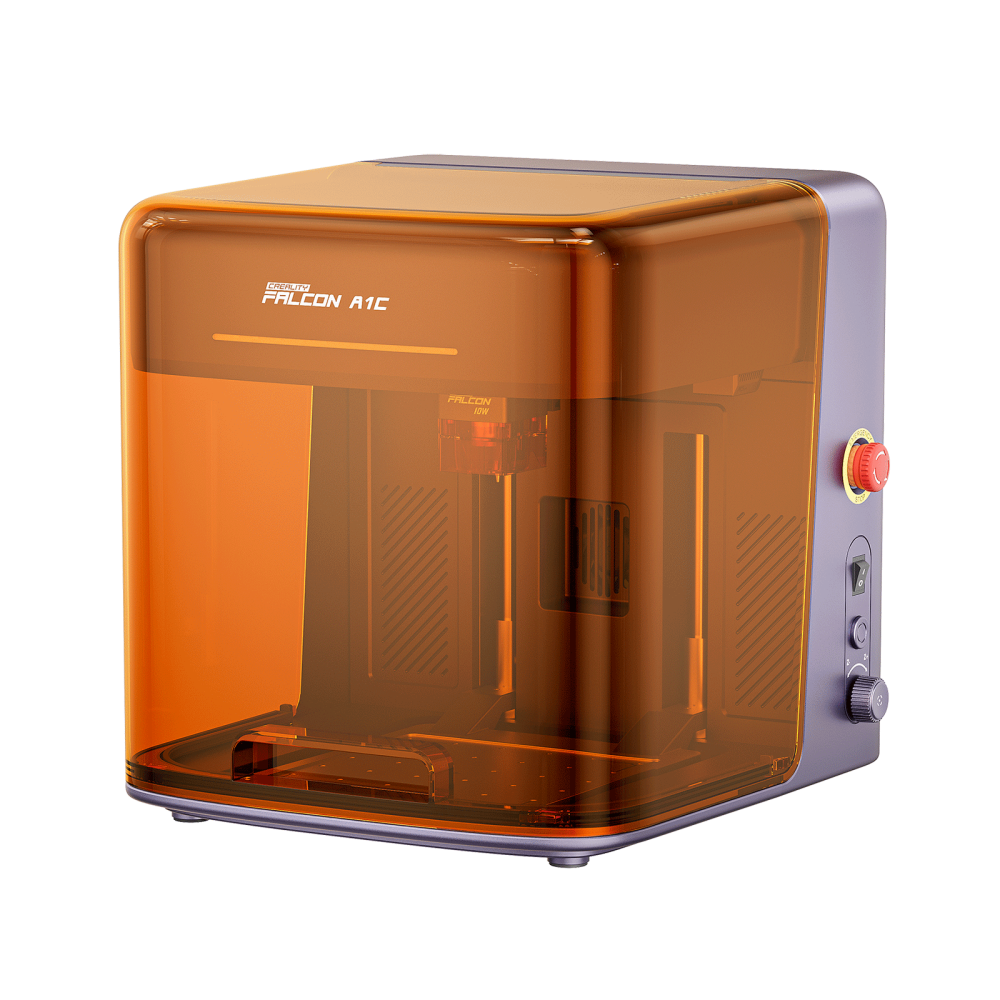

Package contents

The package includes the complete Creality Falcon A1C laser engraver with enclosed design, a 5W diode laser module, a built-in HD AI camera, a power adapter with cable, a USB cable for computer connection, a tool set for basic maintenance, test material and printed documentation with a quick start guide.
