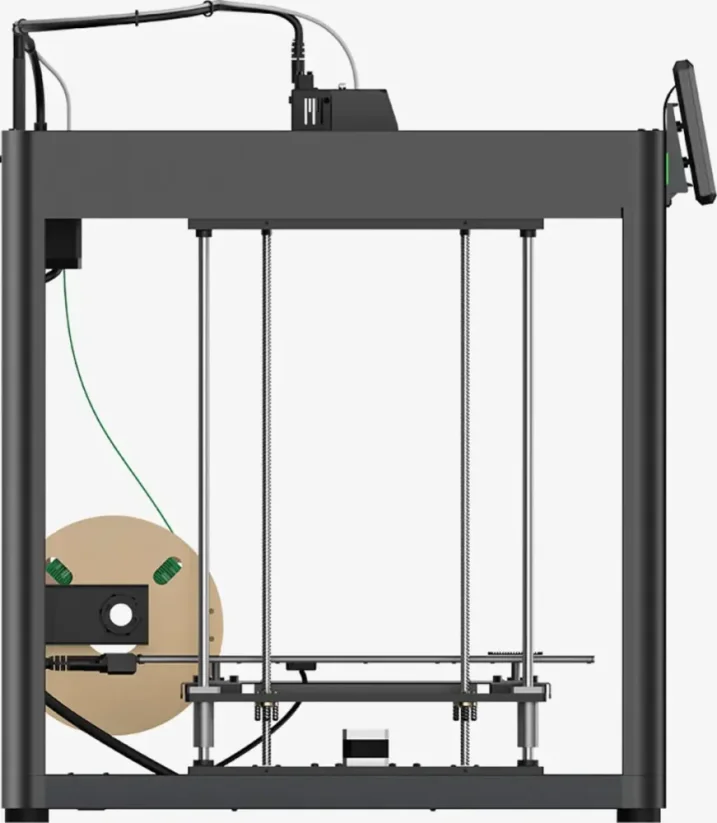

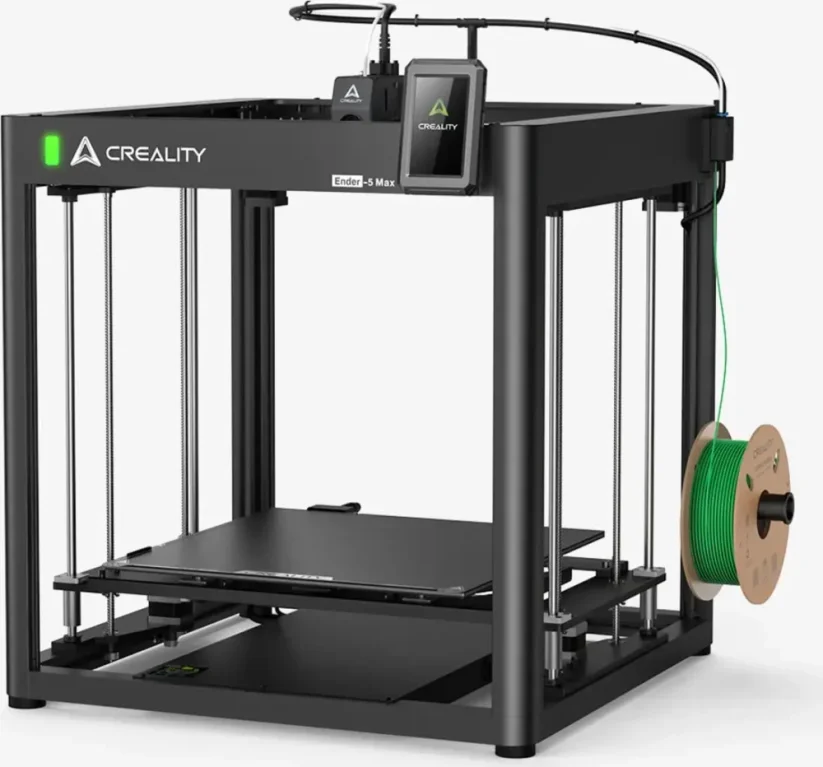

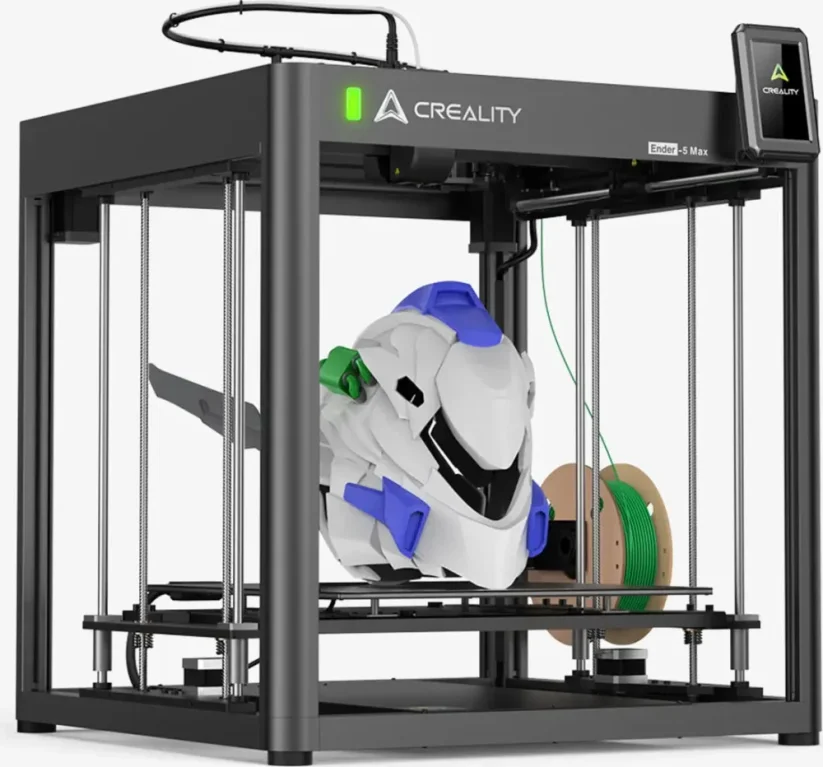

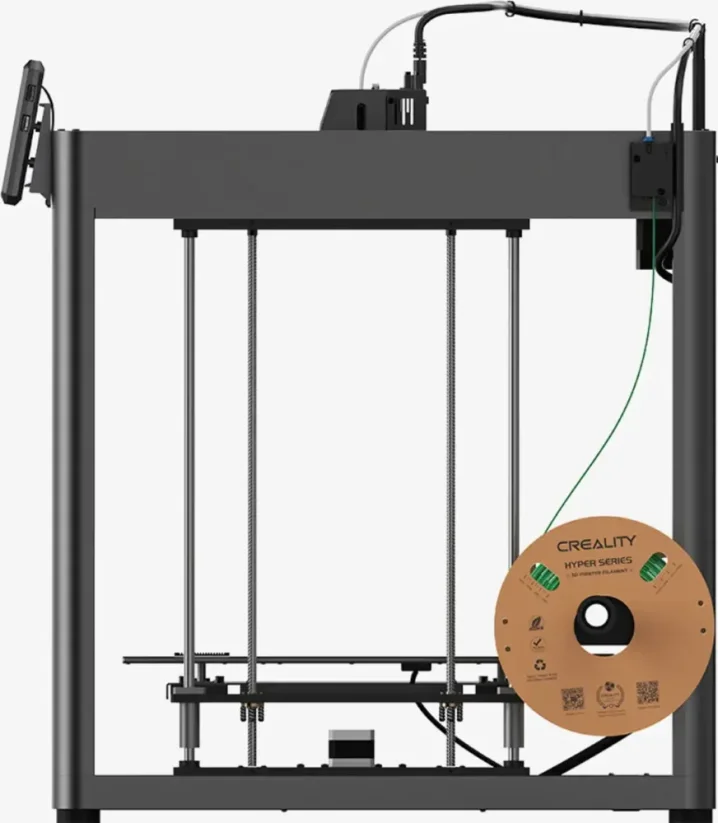

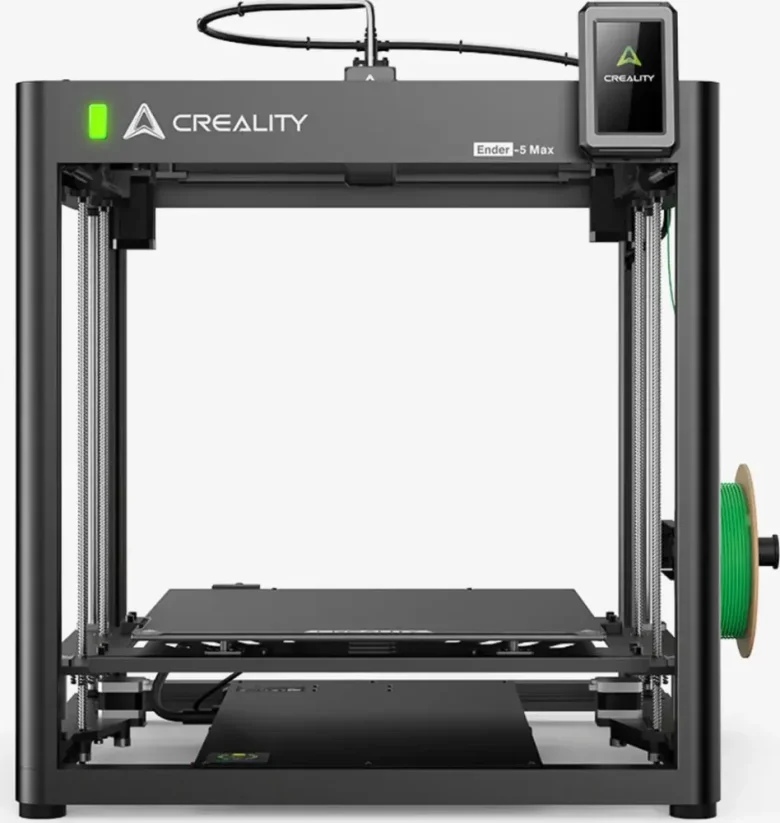

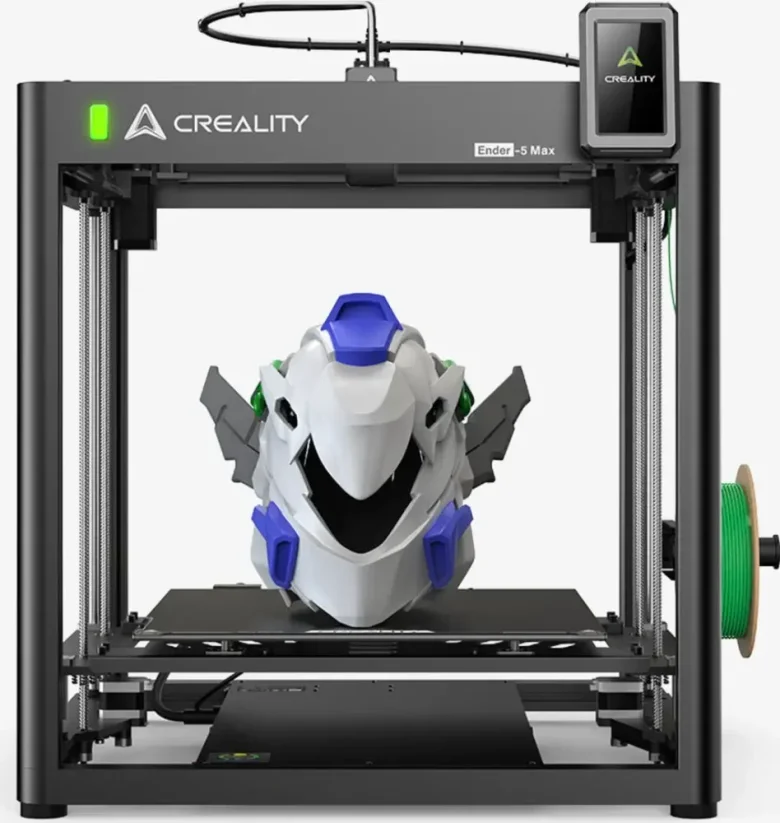

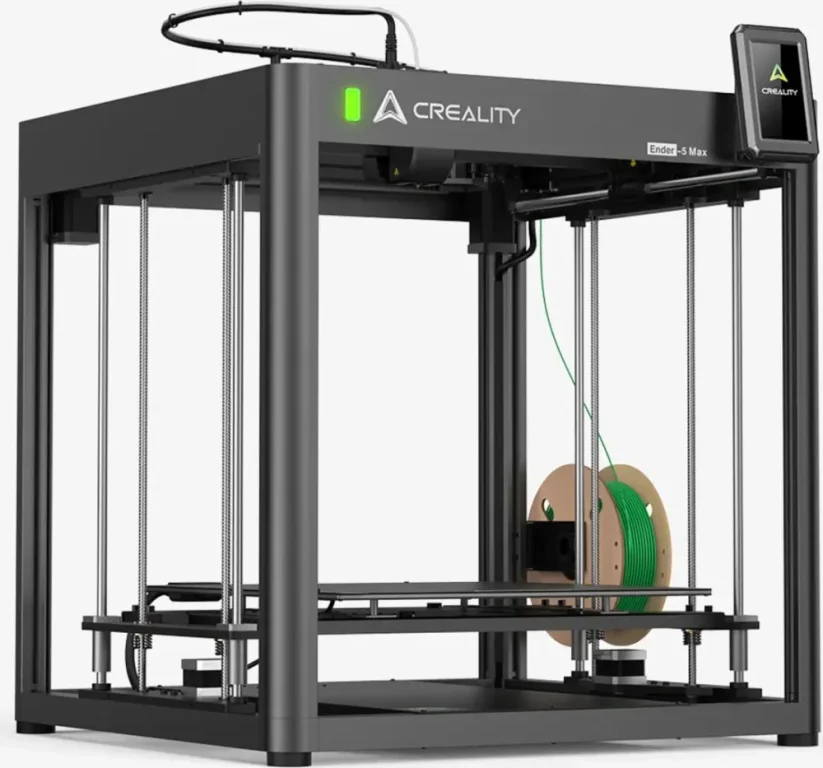

The Creality Ender-5 Max is a large-format CoreXY 3D printer with a 400 x 400 x 400 mm build volume, speeds up to 700 mm/s and a bed load capacity of up to 10 kg. A rugged aluminum frame, linear rail on the X axis, two independently driven Z axes and 36-point auto-leveling make this printer a reliable partner for large projects and print farm deployment.

Massive 400 x 400 x 400 mm build volume

A 40 cm cube means 64 liters of usable volume - enough for large one-piece prints, functional prototypes and batch printing of small models at once. You no longer have to split big models into segments and glue them together.

CoreXY construction with linear rail

A die-cast aluminum frame holds the geometry even under high accelerations. The X axis rides on a precision linear rail and two independently driven Z axes, each with two lead screws and two linear rods, eliminate layer shifts. The bed load capacity is up to 10 kg.

Print speed up to 700 mm/s

Powerful 42-76 stepper motors on the X and Y axes, acceleration up to 20,000 mm/s² and Input Shaping for vibration suppression cut print times to a fraction. You can push Hyper PLA, PETG or ABS through the nozzle at maximum speed without losing quality.

Direct Drive extruder with hardened gears

Direct filament feed handles flexible materials too, and the hardened gear pair is rated for 500 hours of continuous operation. With the nozzle heated up to 300 °C, the door opens to more technical materials such as ASA, PA (nylon) or PLA-CF.

36-point auto bed leveling

The sensor probes over 36 points and compensates for bed deformation across the entire surface. The first layer sits perfectly without manual tweaking - critical for large prints, where flatness differences show the most.

1000 W heated bed and epoxy plate

The 1000 W bed reaches 80 °C in 200 seconds. The flexible epoxy build plate provides reliable adhesion from as low as 45 °C, saving both energy and time. After printing, just flex the plate and the model pops off on its own.

Quiet operation below 55 dB

In Silent mode, noise stays below 55 dB. Three-color status lighting informs you about print progress from a distance - green running, yellow caution, red problem. The printer fits comfortably into a living room or office.

Creality Print Slicer and remote management

Creality Print 5.1 slicer offers over 40 preset filament profiles and central management of multiple printers - ideal for print farms. Connection via WiFi or USB Drive, support for STL, OBJ and 3MF. An optional camera adds remote monitoring.

Supported materials

The open architecture handles a wide range of 1.75 mm filaments: Hyper PLA / PLA, PETG, TPU 95A, ABS, ASA, PLA-CF, PA and PLA-Silk. For replacement wear parts, check our nozzles.

Technical specifications

Package contents

Creality Ender-5 Max 3D printer (assembly kit), 0.4 mm MK8 nozzle, flexible epoxy build plate, power cable, USB drive with slicer and manuals, tool set for assembly and maintenance, filament test sample, quick start guide.
