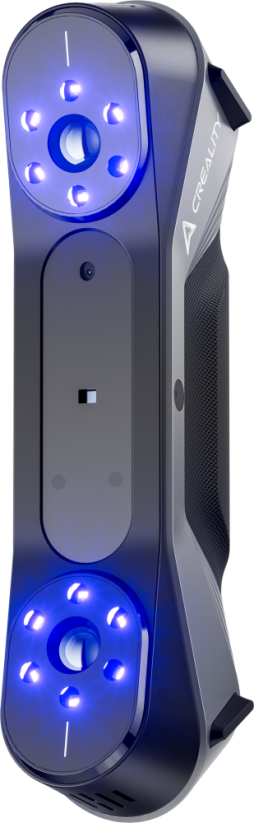

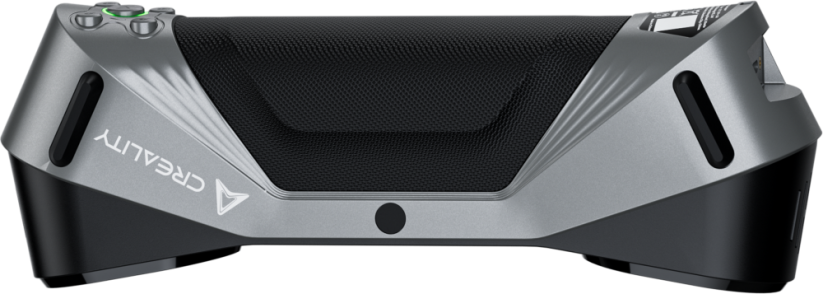

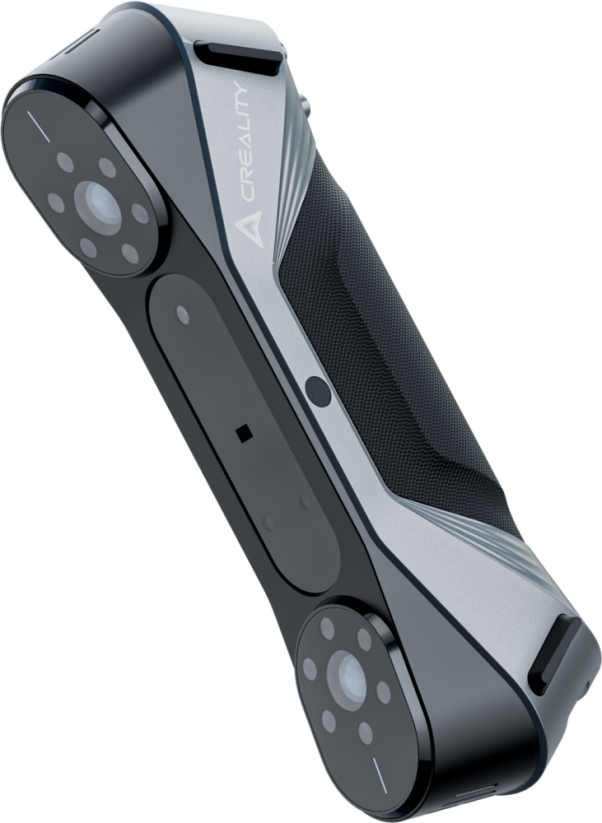

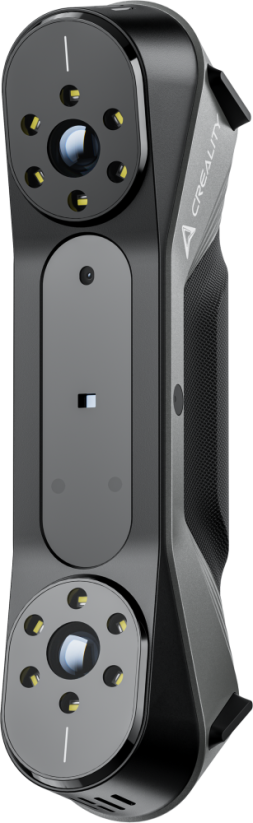

Creality CR-Scan Raptor
Creality CR-Scan Raptor
The CR-Scan Raptor integrates an innovative combination of a blue laser and an infrared light source, covering the scanning of small, medium, and large objects, meeting the demands of various industrial 3D scanning scenarios.
Key Features
✔️ 7 parallel blue laser lines
✔️ Metrology-level accuracy up to 0.02 mm
✔️ Scanning speed up to 60 frames per second
✔️ Object size range 5–2000 mm
✔️ Anti-shake protection for smooth scanning
✔️ Scan black/metal objects without spray
✔️ 24-bit color scanning
✔️ Lightweight and compact, 372 g Show more
The CR-Scan Raptor integrates an innovative combination of a blue laser and an infrared light source, covering the scanning of small, medium, and large objects, meeting the demands of various industrial 3D scanning scenarios.
Key Features
✔️ 7 parallel blue laser lines
✔️ Metrology-level accuracy up to 0.02 mm
✔️ Scanning speed up to 60 frames per second
✔️ Object size range 5–2000 mm
✔️ Anti-shake protection for smooth scanning
✔️ Scan black/metal objects without spray
✔️ 24-bit color scanning
✔️ Lightweight and compact, 372 g Show more
CR-Scan Raptor integrates an innovative combination of blue laser and infrared structured light, covering scanning of small, medium and large objects to meet the needs of various industrial 3D scanning scenarios.
Key Features
✔️ 7 parallel blue laser lines
✔️ Metrology-level accuracy up to 0,02 mm
✔️ Scanning speed up to 60 FPS
✔️ Object size range 5–2000 mm
✔️ Anti-shake stabilization for smooth scanning
✔️ Scanning of black/metal objects without spray
✔️ 24-bit color scanning
✔️ Lightweight and compact – 372 g
BLUE LASER & NIR
CR-Scan Raptor uses a unique combination of blue laser lines and infrared structured light, allowing scanning of small, medium, and large objects for a wide variety of industrial applications.
7 parallel blue laser lines
Metrology-grade accuracy up to 0.02 mm in laser scanning mode. Each laser line is as thin as 0.1 mm, capturing sharp and clean point-cloud edges.
Infrared structured-light scanning
Marker-free scanning: Thanks to 3D imaging with speckle compensation, no markers are needed even for highly detailed objects.
High-speed scanning
Blue-light scanning speed: up to 60 FPS
NIR scanning speed: up to 20 FPS
Unique face & body algorithm
Special scanning mode captures more details of faces and bodies – a full-body scan takes only about 2 minutes.
Accurate and detailed scanning
Advanced temperature compensation ensures stability and precision.
Anti-shake stabilization
One-Shot 3D imaging technology improves natural stability and reduces tracking loss.
Scan black/metal objects without spray
Easily scans tyres, car parts and other dark or reflective objects with no need for scanning spray.
Versatile scanning for all sizes
Thanks to the dual light-source system, it can scan objects from 5 × 5 × 5 mm up to 2000 × 2000 × 2000 mm.
24-bit color scanning
12 circular LED lights enhance color mapping even in low-light conditions.

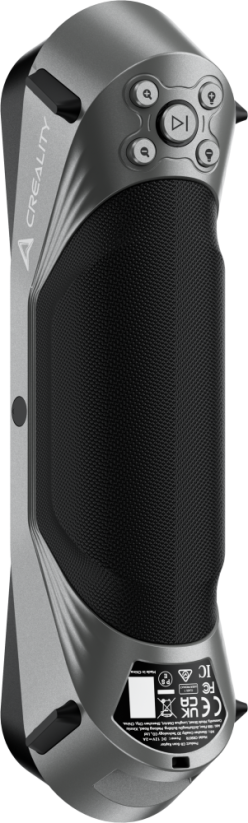

Intuitive operation
Circular status indicator and simple button controls provide clear real-time feedback.
Lightweight & portable
Only 372 g – ideal for long scanning sessions with one-hand operation.
High-precision calibration plate
A precision glass calibration plate ensures long-term scanning accuracy.
