Overview

A set of PCB boards installed on the toolhead of the printer. You can find the version of your X1 Series TH board on the Wiki page.

Installation

Before ordering the TH board or micro lidar for the X1C/X1, please determine their versions to avoid choosing an incompatible version that may cause compatibility issues.

If the Micro Lidar SN starts with 00Exx B, it indicates a dual-red version, and the TH board should also be a dual-red version with an SN starting with 003xxC, 003xxD, or 003xxY.

If the Micro Lidar SN starts with 00Exx A, it indicates a single-red version, and the TH board should also be a single-red version, with an SN starting with 003xxA or 003xxB.

Learn more about replacing the TH Board Set V9 (Dual Red Laser) – X1 Series on the Bambu Lab Wiki.

In the Box

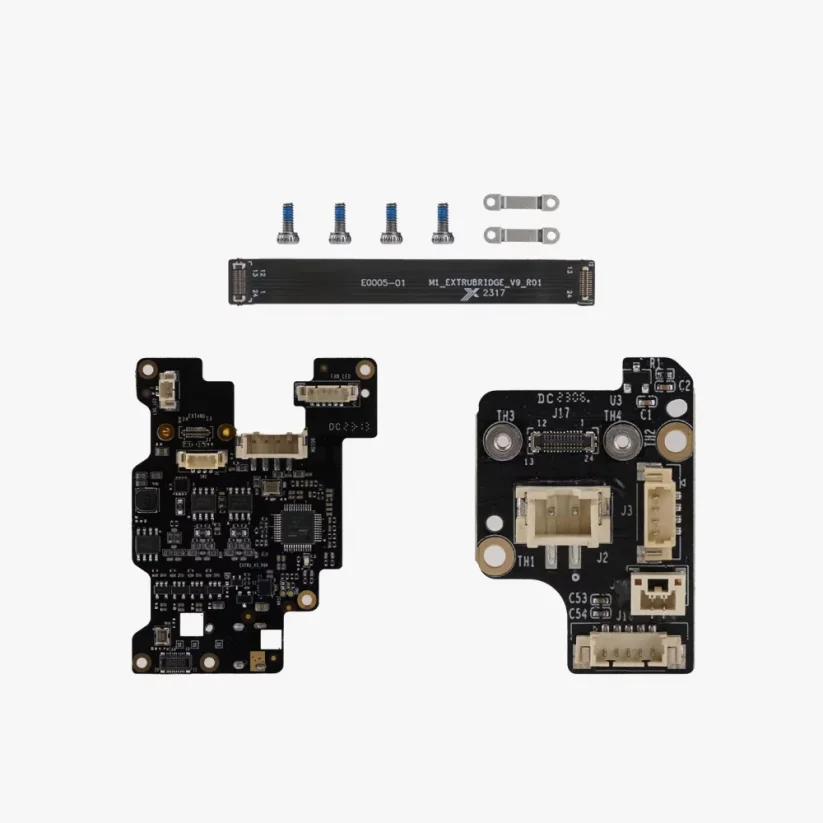

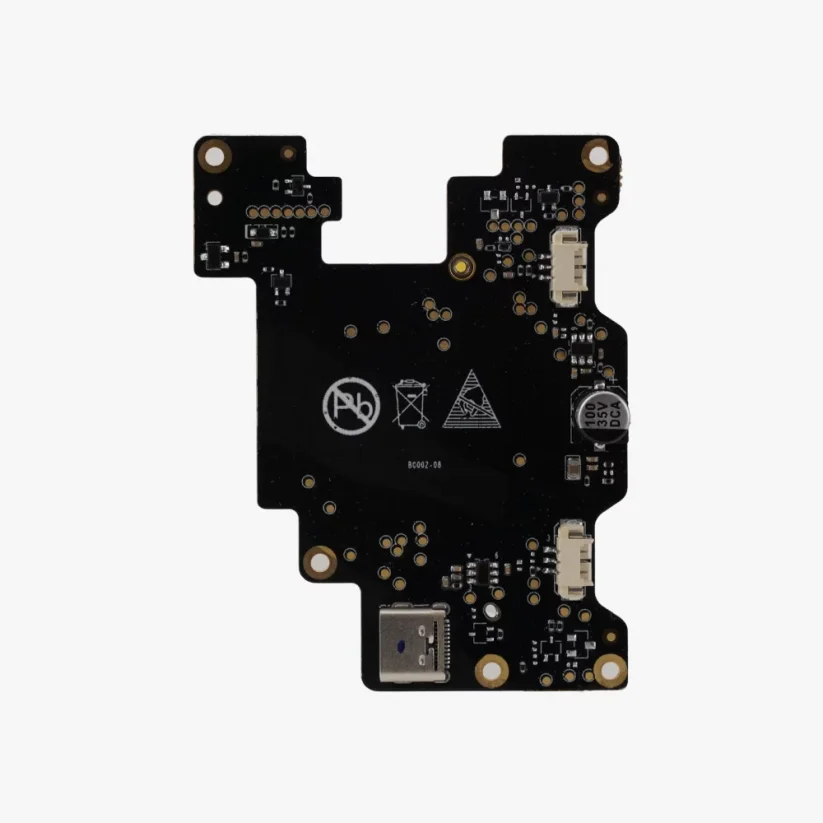

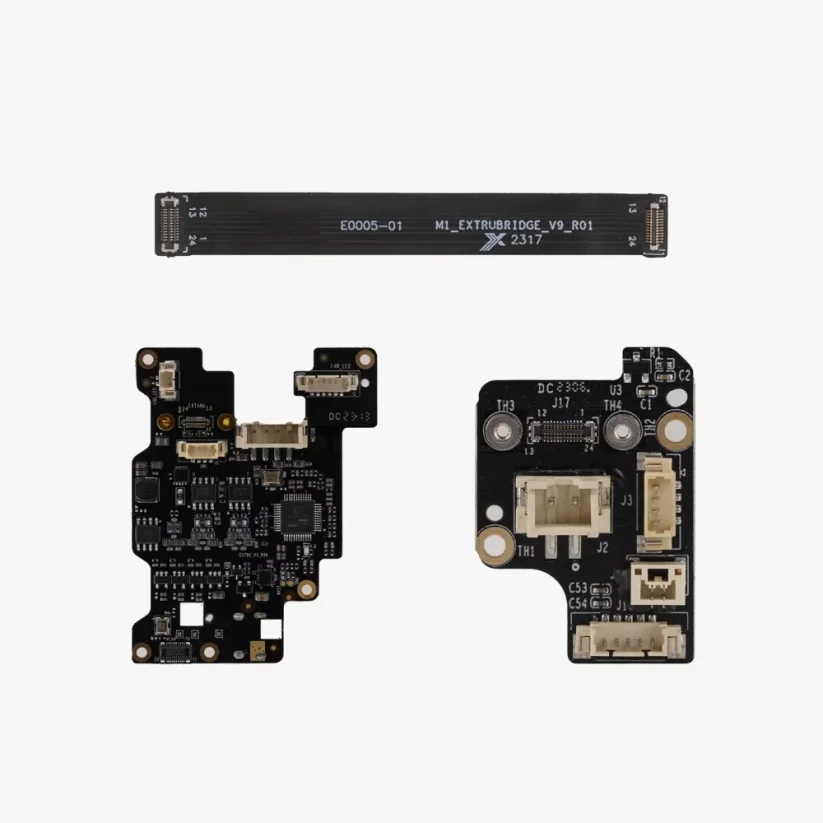

• TH Board Set V9 (Dual Red Laser) ×1

• TH Board FPC Cable V9 ×1

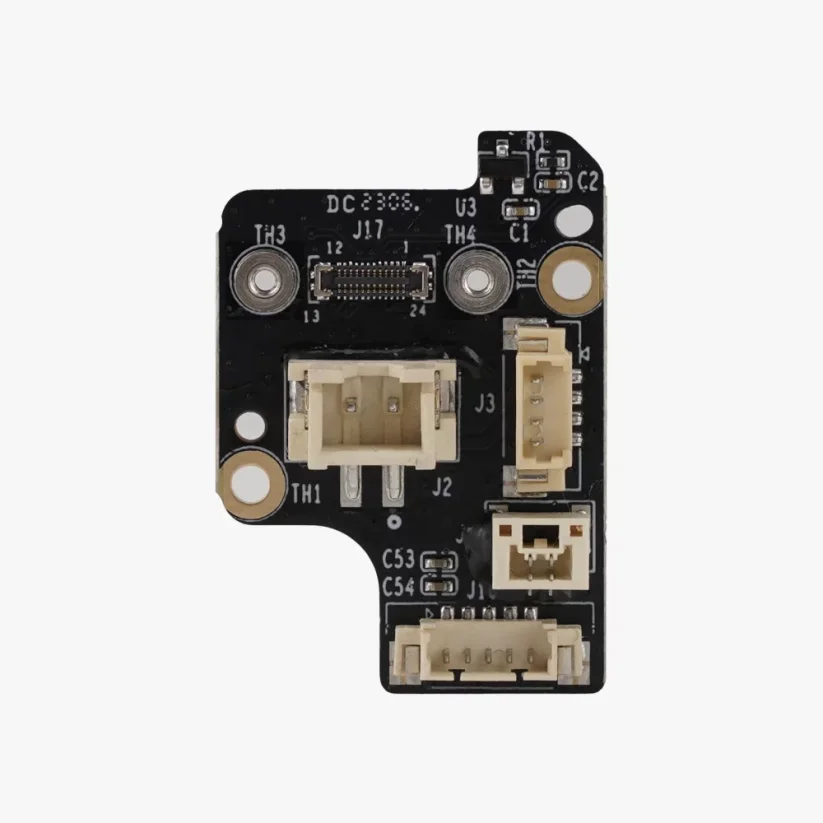

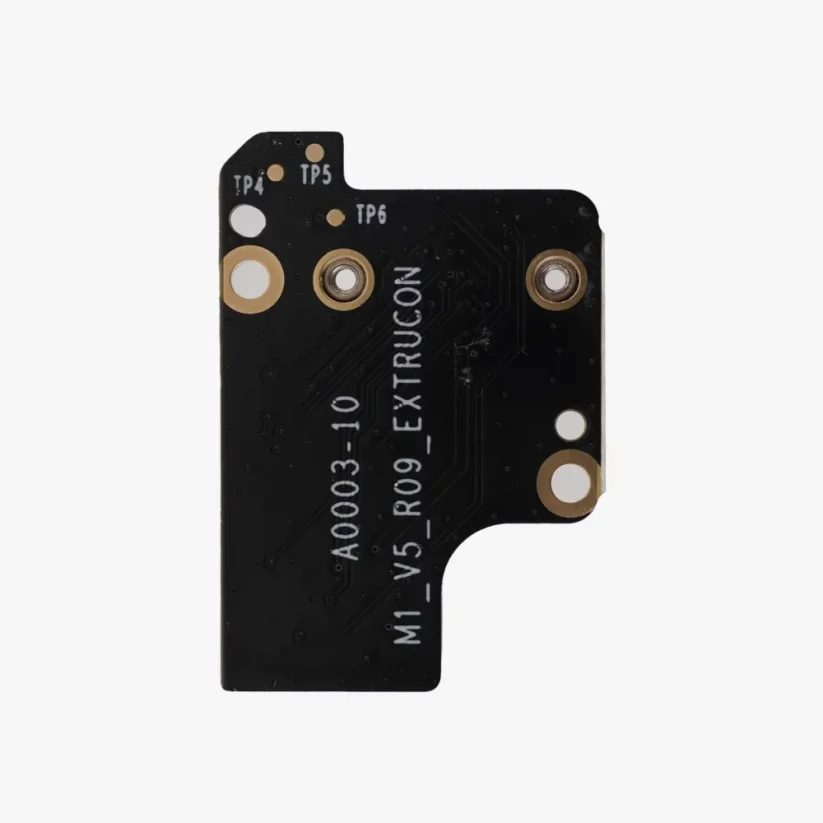

• Extruder TH Board V9 ×1

• M1_6-4 ×4

• Adhesive ×1

Compatibility

X1 and X1C (not for X1E)
