Bambu Lab Engineering Plate | A1, P1, P2, X1, X2

star 1 star 2 star 3 star 4 star 5 3 reviews The number of stars is 5 of 5

Bambu Lab Engineering Plate | A1, P1, P2, X1, X2

star 1 star 2 star 3 star 4 star 5 3 reviews The number of stars is 5 of 5
Bambu Lab

Universal Bambu Lab Engineering Plate build plate for A1, P1, P2, X1, X2 series printers. Handles all filaments - just apply glue.
✔️ Compatible with all filaments (PLA, PETG, ABS, ASA, PC, PA, PET-CF, TPU)
✔️ Durable coating withstands hundreds of washing and peeling cycles
✔️ Surface temperature resistance up to 120 °C
✔️ Smooth finish on the bottom of the print
✔️ Full support for Micro Lidar automatic calibration
✔️ Material: polyester powder + manganese steel, 0.5 mm thickness
✔️ Variants for A1, P1, P2, X1, X2 Show more

Bambu Lab

Universal Bambu Lab Engineering Plate build plate for A1, P1, P2, X1, X2 series printers. Handles all filaments - just apply glue.
✔️ Compatible with all filaments (PLA, PETG, ABS, ASA, PC, PA, PET-CF, TPU)
✔️ Durable coating withstands hundreds of washing and peeling cycles
✔️ Surface temperature resistance up to 120 °C
✔️ Smooth finish on the bottom of the print
✔️ Full support for Micro Lidar automatic calibration
✔️ Material: polyester powder + manganese steel, 0.5 mm thickness
✔️ Variants for A1, P1, P2, X1, X2 Show more

EAN: 6937285510136
In stock > 20 pcs
We ship today if ordered by 1:00 p.m
36,50 € including VAT
SKU: bam_0496
MPN: FAP042
EAN: 6937285510136

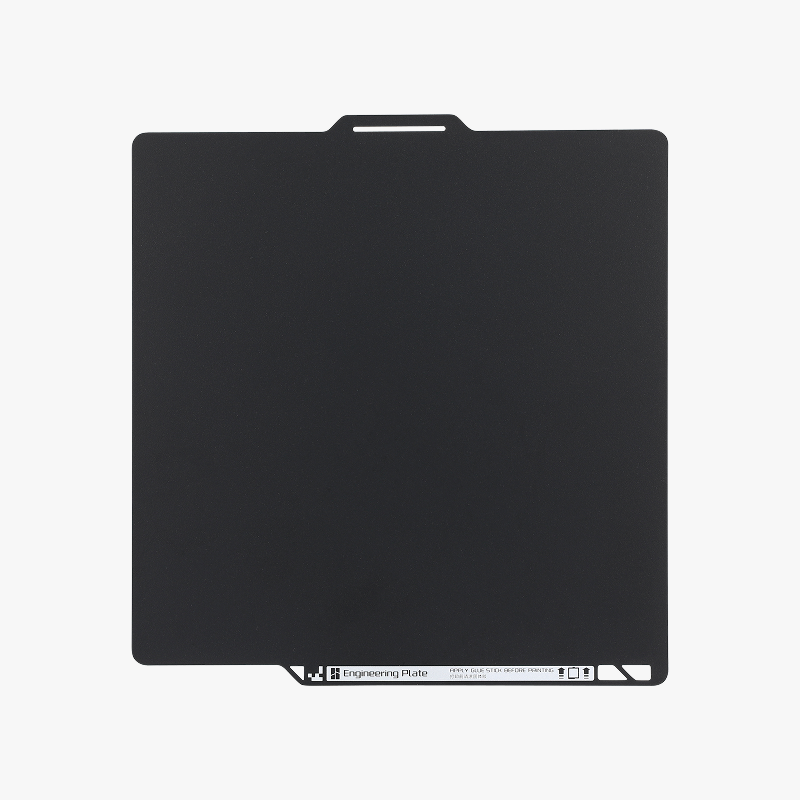

The Bambu Lab Engineering Plate is a universal build plate for a wide range of Bambu Lab printers (A1, P1, P2S, X1, X2D). Thanks to its renewed smooth coating, it handles printing of all filament types - from PLA and PETG to engineering materials such as ABS, ASA, PC, PA, or carbon composites. Glue must be applied before every print.

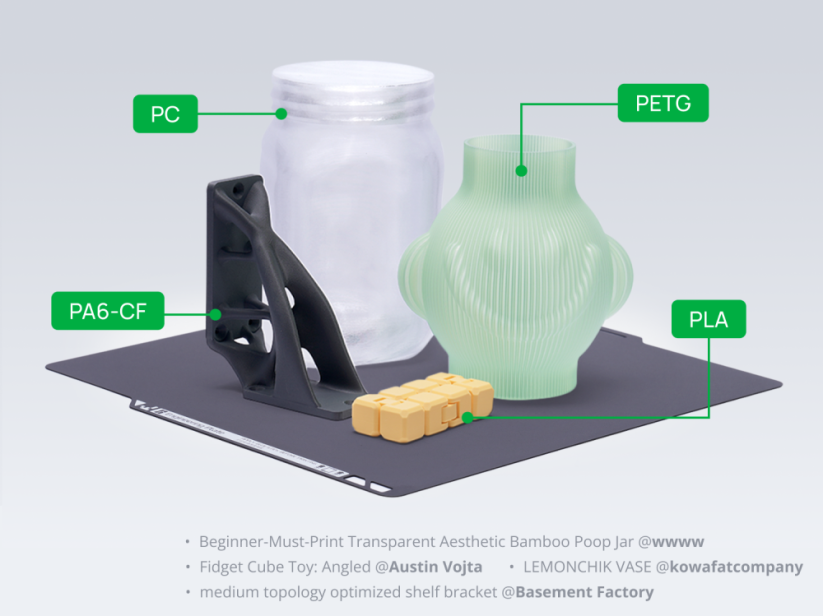

One plate for all filaments

Bambu Lab Engineering Plate universal build plate

The Engineering Plate is the perfect choice when you're not sure which build plate to use for a given material. With a simple layer of glue, it's compatible with the entire Bambu Lab filament lineup - from standard PLA through engineering ABS, ASA, PC to nylon and carbon-filled materials. A single plate thus replaces an entire set of specialized build plates.

Durable and smooth surface coating

The renewed coating significantly improves temperature resistance, scratch resistance, and corrosion resistance. The build plate is designed for long-term high-temperature printing and withstands hundreds of washing and print-removal cycles. Its smooth and reliable surface guarantees stable adhesion with every print.

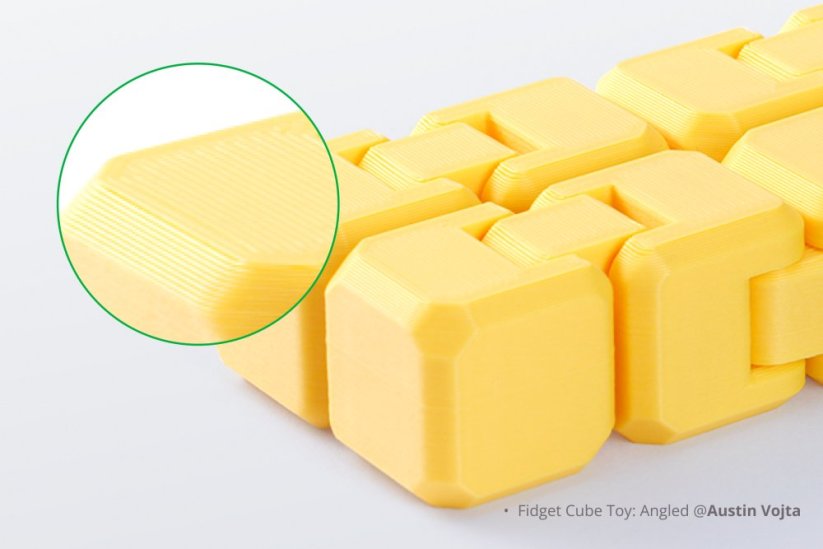

Smooth and natural finish on the bottom of your print

The smooth base coating transfers a flat, matte-smooth surface onto the bottom of the printed model, which blends better with the surrounding areas. Ideal for functional parts, enclosures, and mechanical components where the typical texture of textured build plates is not desirable.

Compatibility across the entire Bambu Lab lineup

The plate is manufactured in variants for A1, P1P/P1S, X1/X1C, P2S, X2D. Usable print area is 256×256 mm.

Recommended temperatures for individual materials

The heated bed temperature directly affects adhesion. Increasing the temperature improves adhesion, but it must be adjusted to the specific material and the printer environment.

  • PLA / PLA-CF / PLA-GF: 45-60 °C + glue
  • PETG / PETG-CF: 60-80 °C + glue
  • ABS / ASA (except A1 mini): 90-100 °C + glue
  • TPU: 35-45 °C + glue
  • PC / PC-CF (except A1 mini): 90-110 °C + glue
  • PA / PA-CF / PAHT-CF (except A1 mini): 90-110 °C + glue
  • PET-CF (except A1 mini): 80-100 °C + glue

Automatic calibration via Micro Lidar

The latest firmware brings significant improvements to Engineering Plate calibration using the Micro Lidar system. The plate is fully compatible with the automatic calibration process of Bambu Lab printers, saving time and ensuring consistent first-layer quality.

Practical tips for use

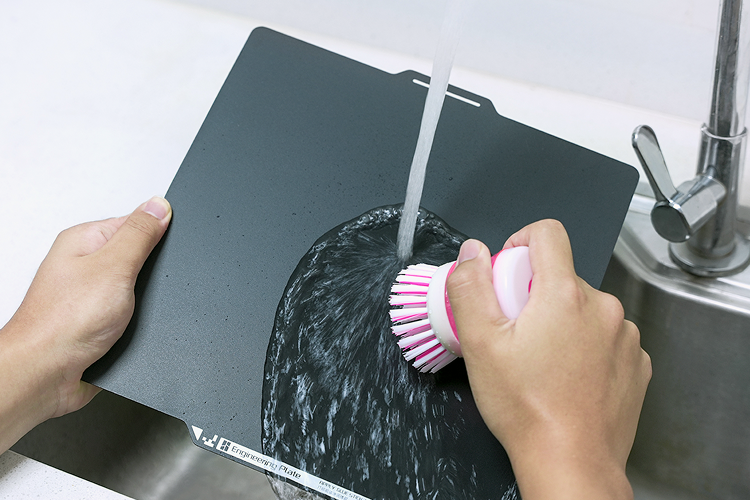

Always apply glue before printing - liquid glue is recommended for a more even coating and better first-layer quality, or a solid glue stick for easier print removal. Wait several minutes for the plate to cool down before removing the print. Never clean the Engineering Plate with acetone - it damages the surface. Warm water and dish soap are sufficient for regular maintenance.

Technical specifications

Parameter Value
Material Polyester powder + manganese steel
Surface temperature resistance Up to 120 °C
Thickness 0.5 mm
Print area (X1C/P1P/P1S/A1/P2S/X2D) 256 × 256 mm
Weight (256 mm variant) 0.50 kg
Compatibility A1, A2L, P1P, P1S, P2S, X1, X1C, X2D
Glue required Yes, before every print

Package contents

1× Bambu Lab Engineering Plate for A1, P1, P2, X1, X2
