The Anycubic Photon Mono 4 Ultra is a compact resin 3D printer with a 7" monochrome LCD panel at 9K resolution (9024 × 5120 px), pushing print detail to true microscopy levels. Thanks to its high-speed mode of up to 119.84 mm/h, integrated WiFi and a cooling tunnel system, it handles miniatures, prototypes and dental models with a sharpness rarely seen in this price range.

9K monochrome LCD panel with 17 μm sharpness

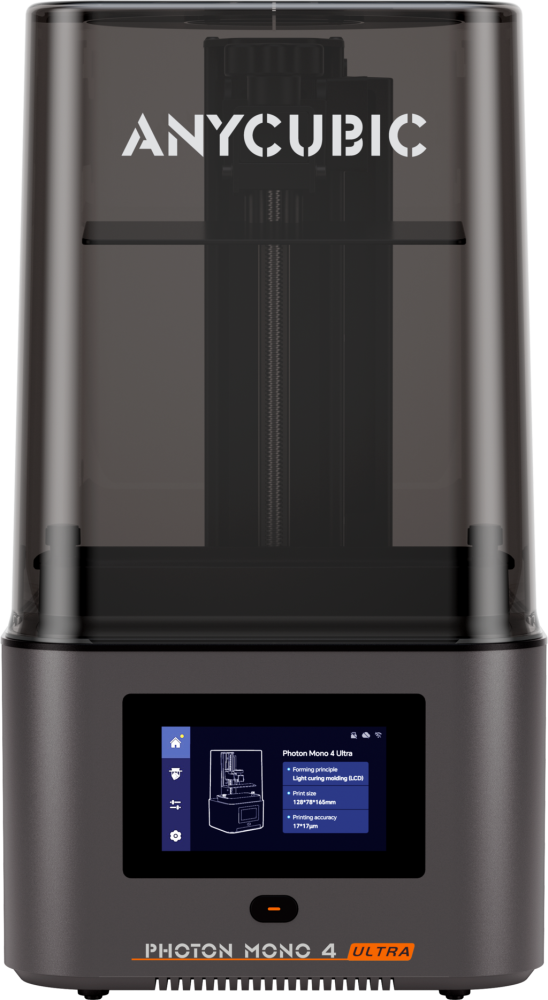

The heart of the printer is a 7" monochrome LCD with a resolution of 9024 × 5120 pixels, corresponding to a 17 μm pixel pitch. Every hair, every scale and every micro-texture on miniatures comes out sharp and free of pixelation. The monochrome matrix also transmits more UV light, which directly translates into shorter exposure times and a longer panel lifespan.

Print speed up to 119.84 mm/h

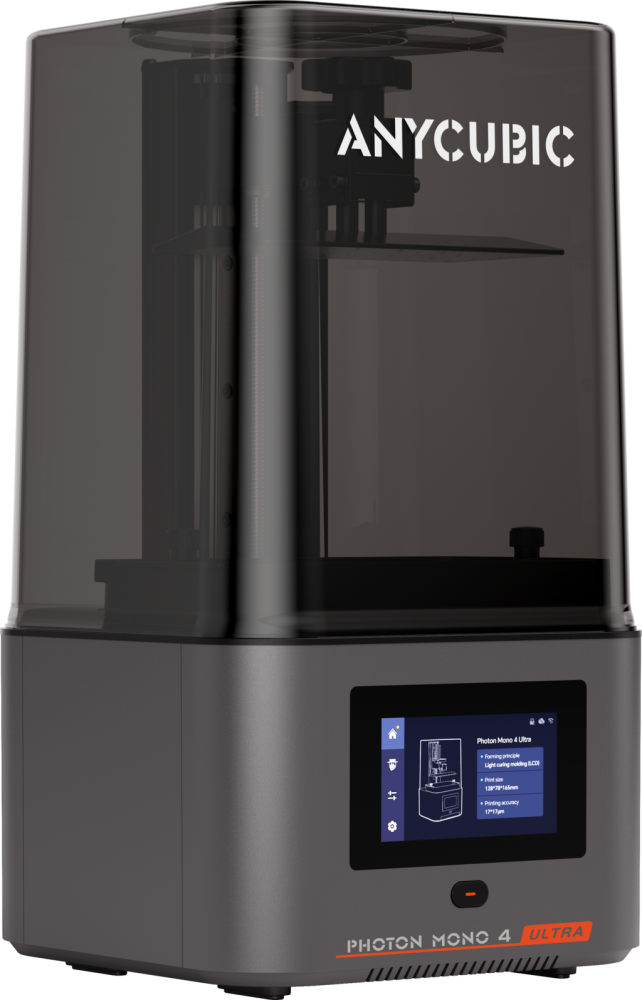

The Mono 4 Ultra combines powerful COB UV sources, a release FEP film and an optimized slicer, allowing it to print short layers in a matter of seconds. The real average speed is around 119.84 mm/h (depending on material and settings), so a standard 28mm figure is finished in tens of minutes instead of hours.

Build volume 153.4 × 87 × 165 mm

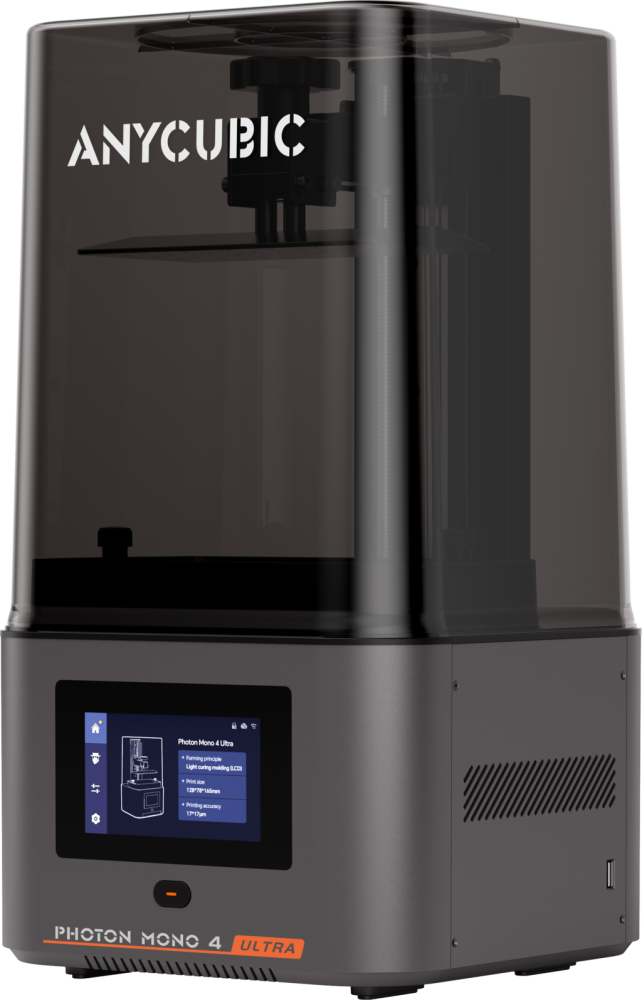

The build volume of 153.4 × 87 × 165 mm is perfectly sized for waves of miniatures in 28-75 mm scale, dental models, jewelry prototypes and smaller functional parts. The sandblasted aluminum platform holds resin reliably from the very first layer and the manual four-point leveling is manageable even for a beginner.

Cooling tunnel and stable printer temperature

Anycubic has built active cooling of both the LCD panel and control electronics into the design. The display does not overheat even during long batch prints and its lifespan is extended. The lid closure with a safety switch (Door Lock During Print) also prevents UV radiation leakage and opening the chamber during operation.

WiFi, Ethernet and wireless print sending

The printer offers full connectivity: USB, Ethernet and WiFi. You can send models directly from slicers (Photon Workshop, Chitubox) or via the Anycubic Cloud app. The clear color touchscreen lets you monitor print progress, adjust parameters and start jobs without connecting a PC.

Compatible with a wide range of resins

The Mono 4 Ultra works with all common 405 nm photopolymer resins - from standard through water-washable, ABS-Like and Tough to dental compositions. If you print functional parts, you can combine resin printing with prints from PETG or ABS from an FDM printer and obtain hybrid assemblies.

Compact dimensions and low power consumption

With dimensions of 231 × 236 × 430 mm and a weight of 5 kg, the printer fits on any desk. The maximum power draw of 66 W means that even all-day printing remains inexpensive to run. An ideal choice for a home studio, office or smaller modeling workshop.

Layer accuracy 0.02 - 0.15 mm

Selectable layer height from 20 μm to 150 μm gives you control over the trade-off between speed and detail. For collectible figures you can go down to a fine 25 μm, while for prototypes and functional parts 100-150 μm is enough and printing runs several times faster.

Technical specifications

Package contents

The box includes complete equipment for an immediate start:

• Anycubic Photon Mono 4 Ultra 3D printer
• Metal build platform
• Resin vat with FEP film
• USB flash drive with manual and test model
• Power adapter and cable
• Tool kit (screwdrivers, wrenches, scraper)
• Funnel and disposable gloves
• User manual in Czech / English
