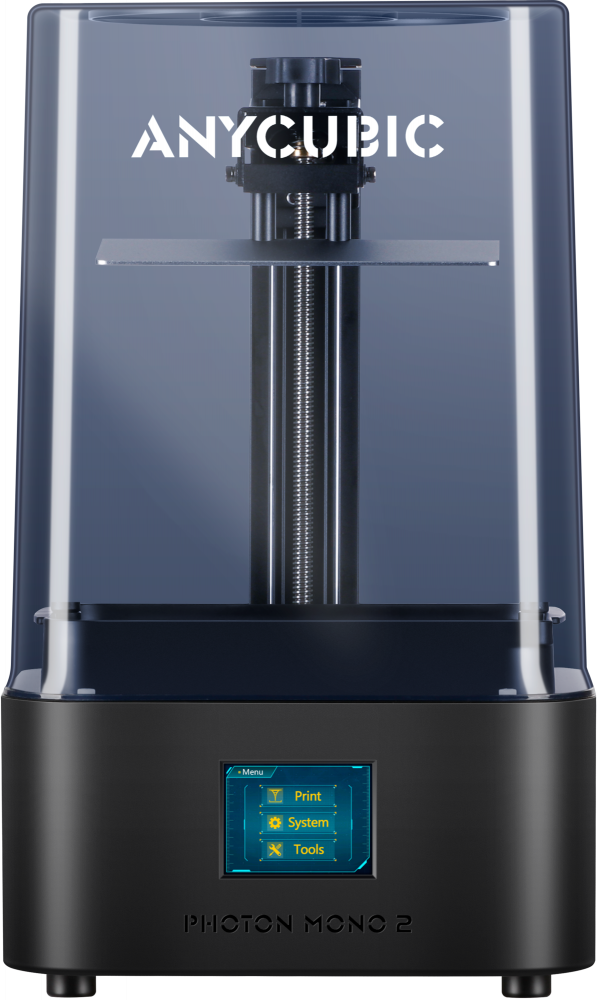

The Anycubic Photon Mono 2 is a compact resin (MSLA) 3D printer with a monochrome 4K+ LCD display, a 143x89x165 mm build volume and the new LightTurbo lighting system. It delivers sharp details, an even UV field and easy operation - an ideal choice for printing figurines, miniatures, jewelry or models where every detail matters.

Monochrome 4K+ LCD display

At the heart of the printer is a 6.6-inch monochrome LCD panel with a resolution of 4096x2560 px. The 34 μm pixel size ensures sharp edges, clean details and legible geometry even on very small models. The panel comes factory-protected with a film against scratches and resin leaks, which extends its service life.

Build volume 20% larger than the previous generation

The 143x89x165 mm build volume (2.09 l) is 20% larger than the original Photon Mono. You get room for larger models, more parts in a single batch or more convenient support layout. At the same time, the printer remains compact and fits on a standard desk.

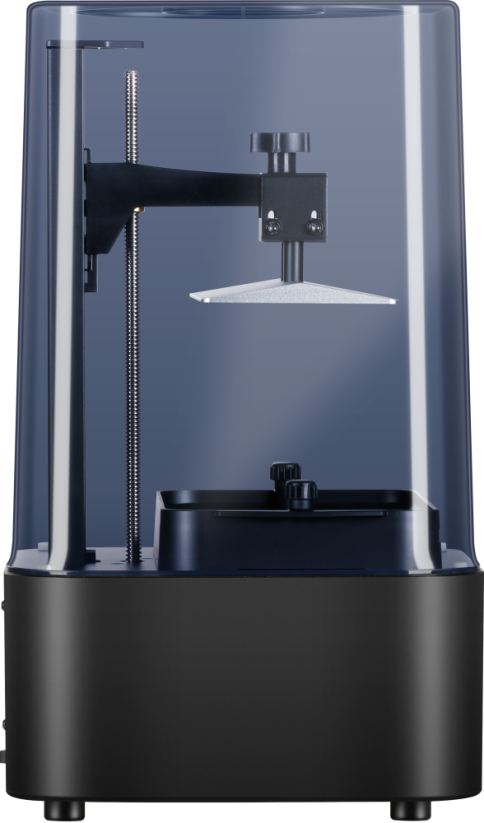

Anycubic LightTurbo - uniform UV lighting

The new LightTurbo optical system operates at an intensity of up to 4200 μW/cm² and delivers a stable, uniform UV field across the entire print area. The result is smoother surfaces, consistent layer curing and better rendering of fine details that could disappear under uneven lighting.

Checkerboard-textured build plate

The build plate features a laser-engraved checkerboard pattern on its surface, which significantly improves first-layer adhesion. Models do not slip or detach from the plate during printing, which reduces the number of failed prints and makes removing the finished print easier.

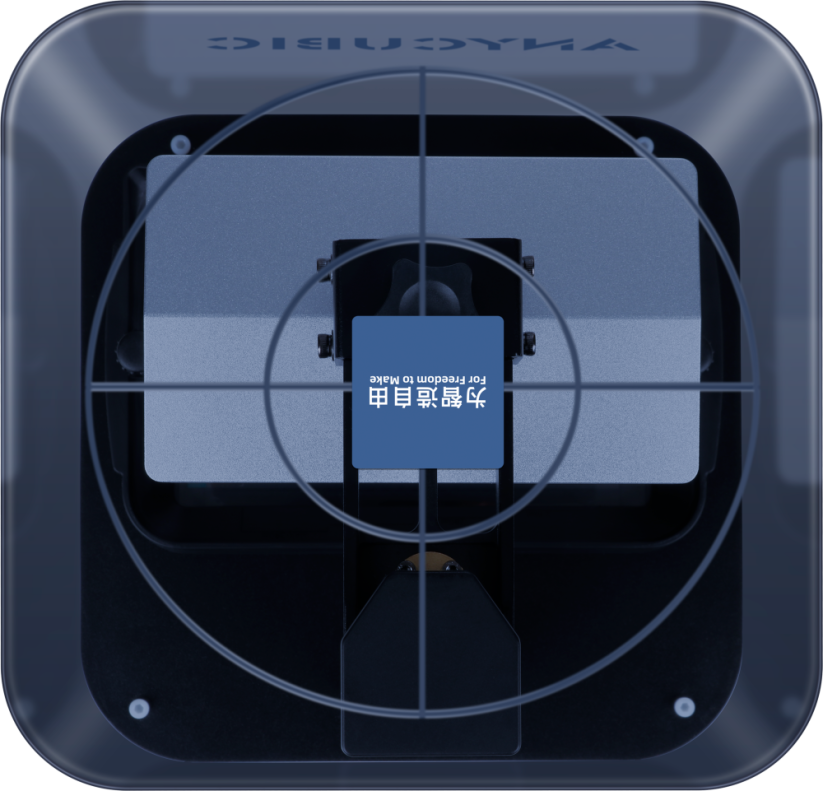

Easy 4-point leveling

Build plate calibration is done simply at four points using the supplied wrench and calibration paper. Even a beginner can complete the leveling in a matter of minutes, and thanks to the rigid Z-axis design, the setting holds throughout the entire life of the machine.

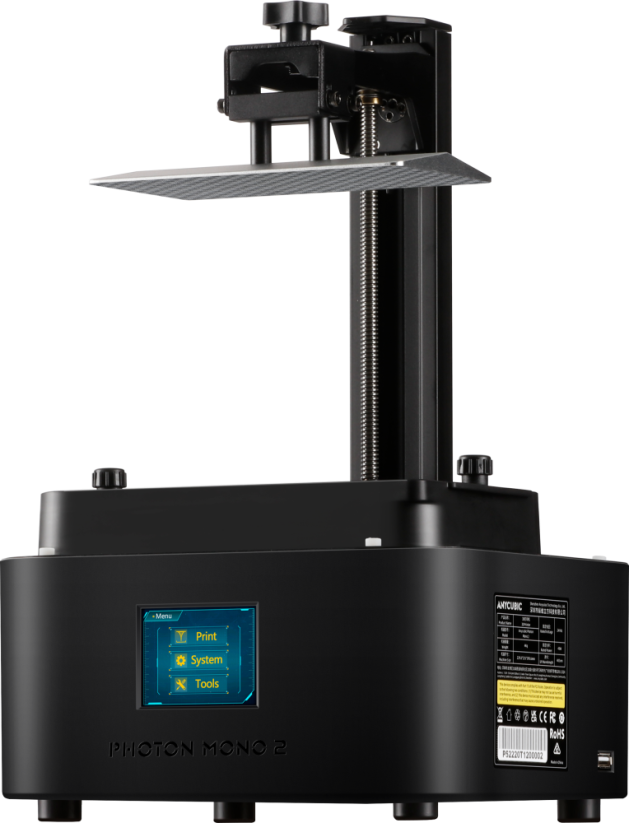

Protective UV cover and safe operation

The printer comes with a removable UV cover that protects the resin from premature curing by ambient light and at the same time minimizes odor spread from the vat. The cover increases the safety of working with photopolymer resins in a regular workshop or home office.

2.8" touchscreen control

Control is handled by a 2.8-inch color touchscreen with a clear menu. Loading a file, starting a print, pausing and calibration are all just a few taps away. Data is transferred to the printer via a USB flash drive.

Slicer and workflow

The printer is fully compatible with the Anycubic Photon Workshop slicer as well as popular tools such as Chitubox or Lychee Slicer. This gives you full control over supports, model orientation and exposure profiles for various types of resins.

Technical specifications

Package contents

The package contains everything you need to start your first print:

• Anycubic Photon Mono 2 3D printer
• UV protective cover
• Build plate with checkerboard texture
• Resin vat with film
• USB flash drive with manual and test model
• Power adapter and cable
• Tool set (wrenches, scraper, side cutters)
• Paper funnels for resin filtration
• Protective gloves and mask
• Spare screws and accessories
• Quick user guide

For printing you will need a separately purchased 405 nm UV photopolymer resin. After printing, we recommend using a washing and curing station for final treatment of the model.
